MPI Machines · UV-A Inspection Lights
Portable, mobile, stationary and special-purpose MPI machines, designed around the heavy, safety-critical parts that industry depends on.
Product range

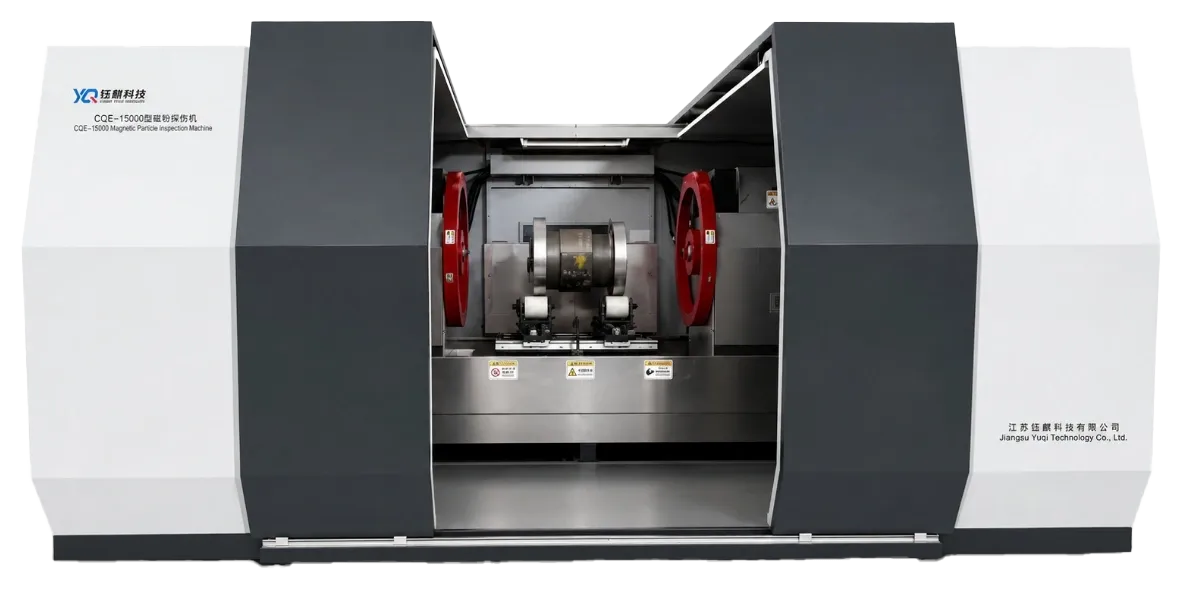

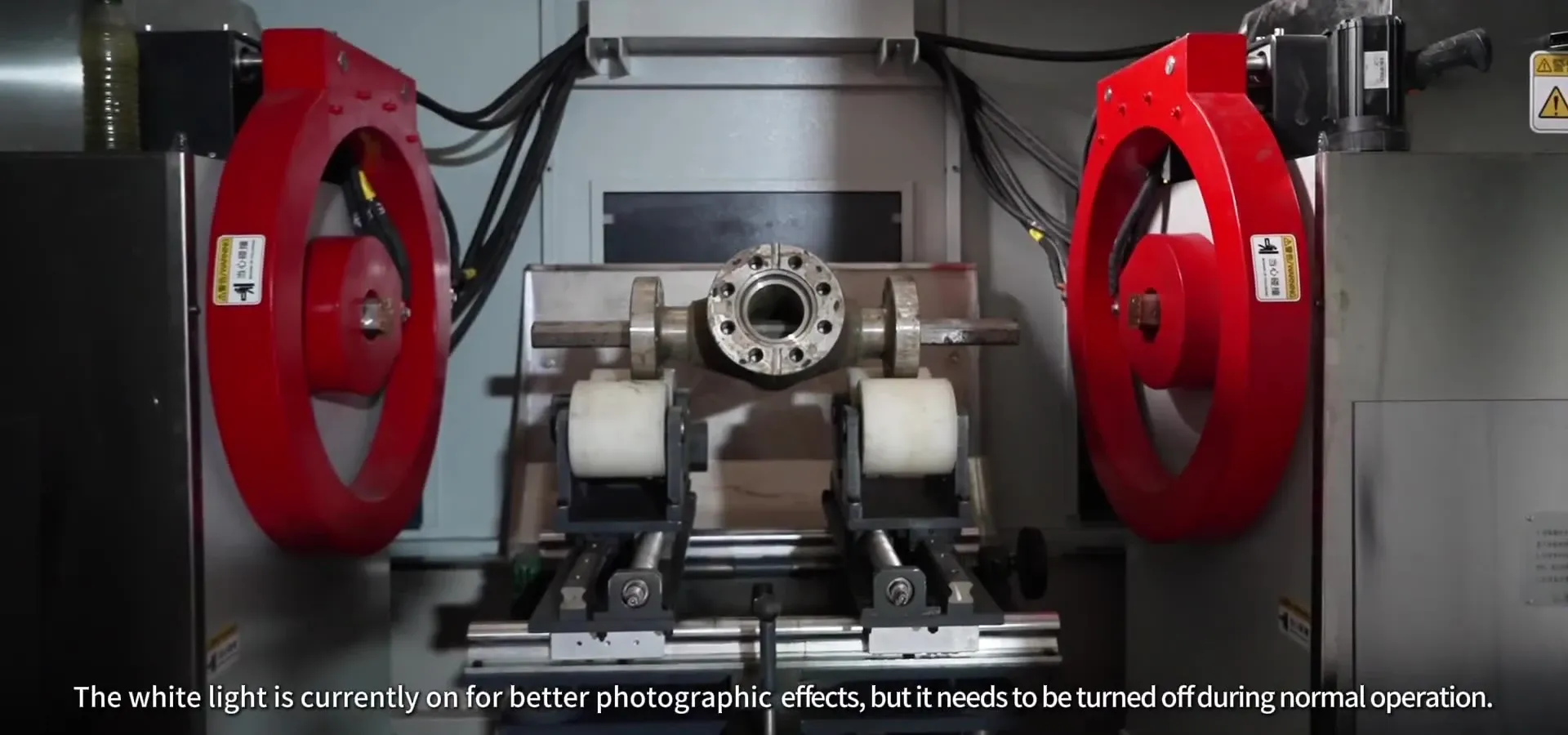

Stationary · Oilfield parts
For tubing heads, casing heads, tees, crosses and valve bodies, with AC/DC switchable magnetization.
| CQE-8000 | CQE-15000 | |
|---|---|---|
| Rotational diameter | 200–600 mm | 500–1,000 mm |
| Part length | ≤ 1,000 mm | ≤ 1,500 mm |
| Central conductor | DC 0–8,000 A | DC 0–15,000 A |
| Bracket capacity | 2,000 kg | 4,000 kg |
CQE-8000 details CQE-15000 details
Discuss this system

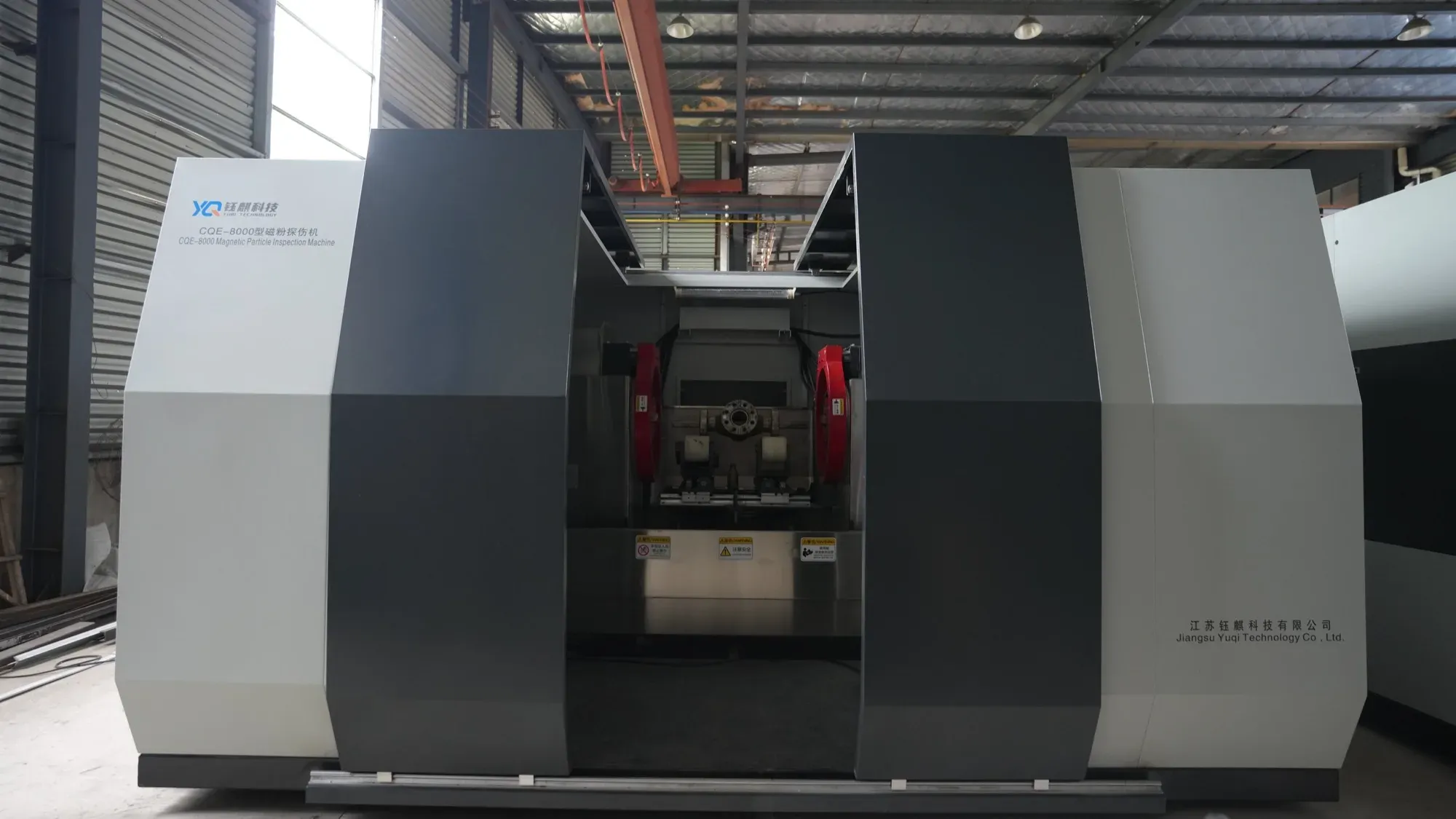

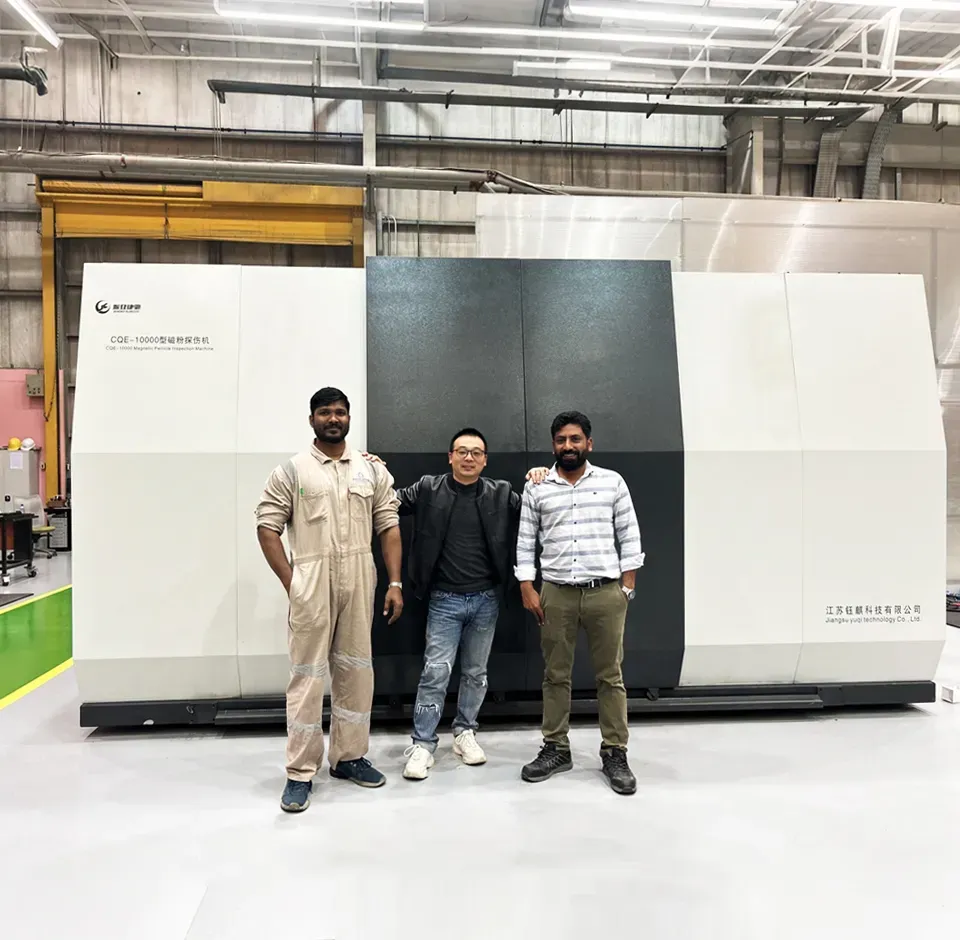

Stationary · Shafts & crankshafts

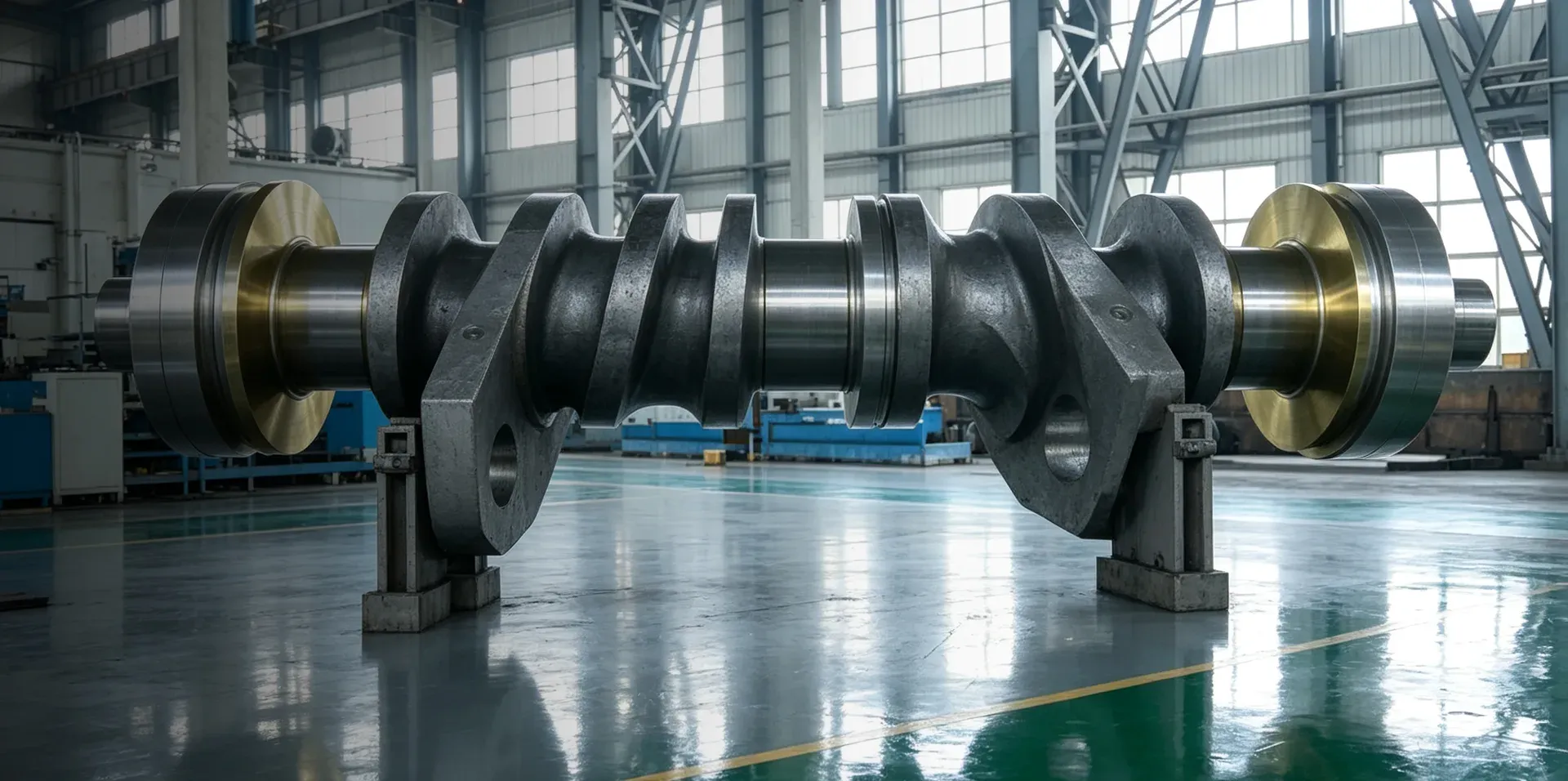

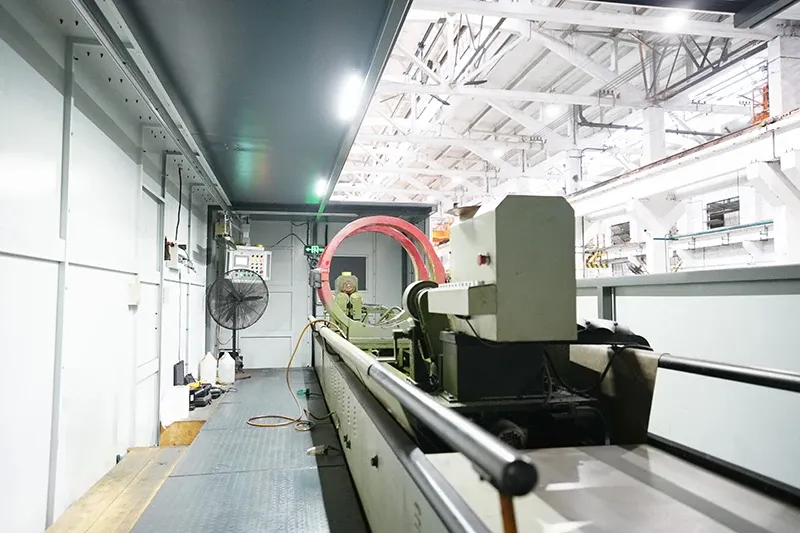

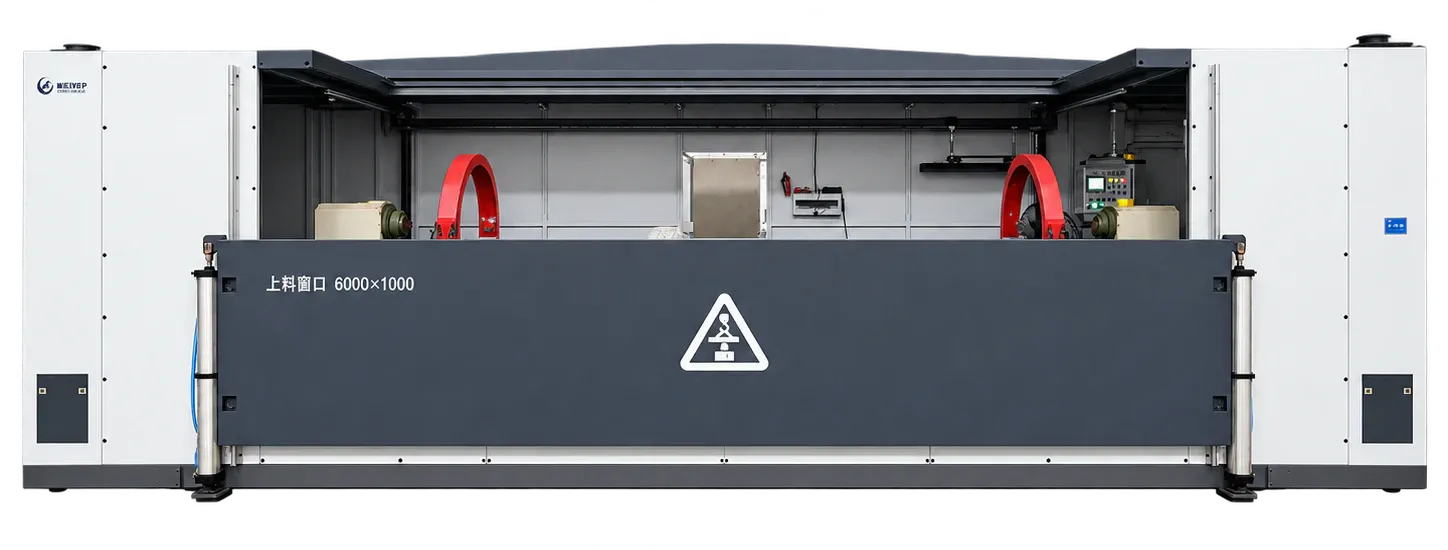

Shafts and crankshafts up to 4 m, and PLC-controlled machines for marine crankshafts up to 14 m.
| CQE-8000 | CQE-10000 | |
|---|---|---|
| Rotational diameter | ≤ 500 mm | ≤ 1,000 mm |
| Part length | ≤ 4,000 mm | 2,000–14,000 mm |
| Circular magnetization | DC 0–8,000 A | DC 0–10,000 A |
| Load capacity | 5,000 kg | ≥ 20 t |
CQE-8000 details CQE-10000 details
Discuss this system
Stationary · Main + auxiliary units

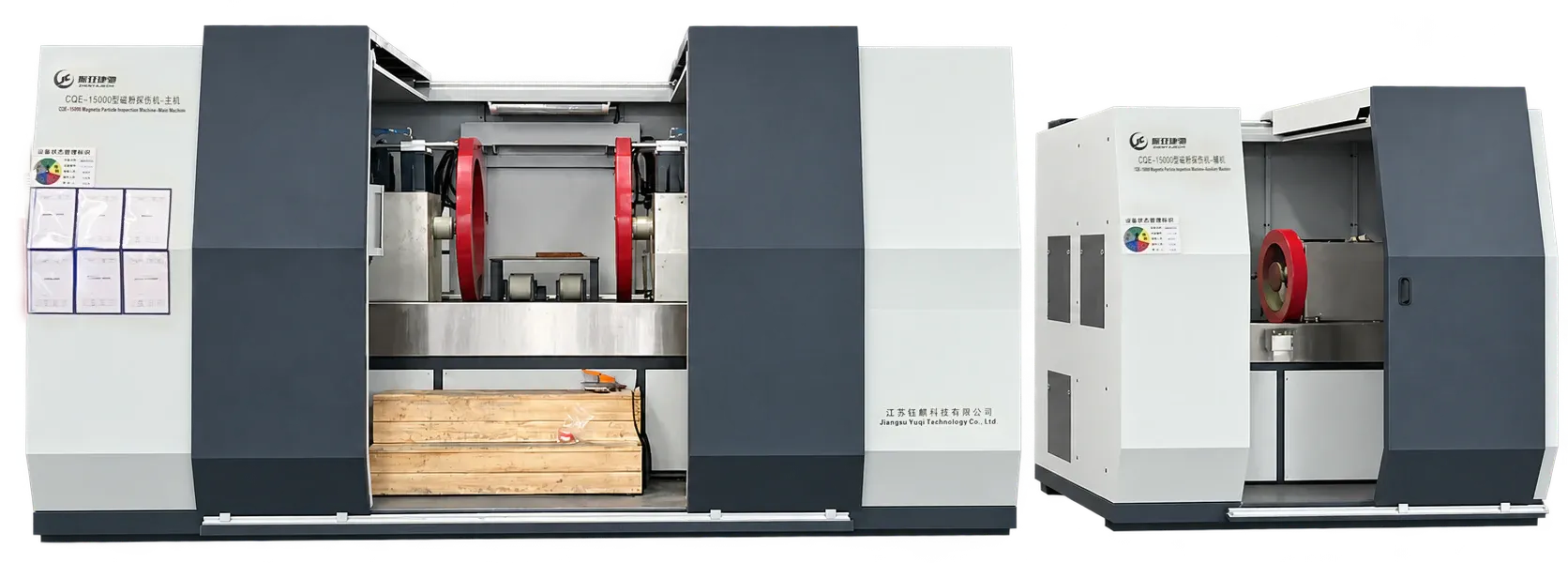

A main unit for large parts and an auxiliary unit for small ones, sharing one power cabinet.
| CQE-15000 | CQE-12000 | |
|---|---|---|
| Central conductor | DC 0–15,000 A | DC 0–12,000 A |
| Longitudinal field | AC 0–24,000 AT | |
| Remanence | ≤ 0.2 mT | |
| Sensitivity | CX-430 test pieces | |

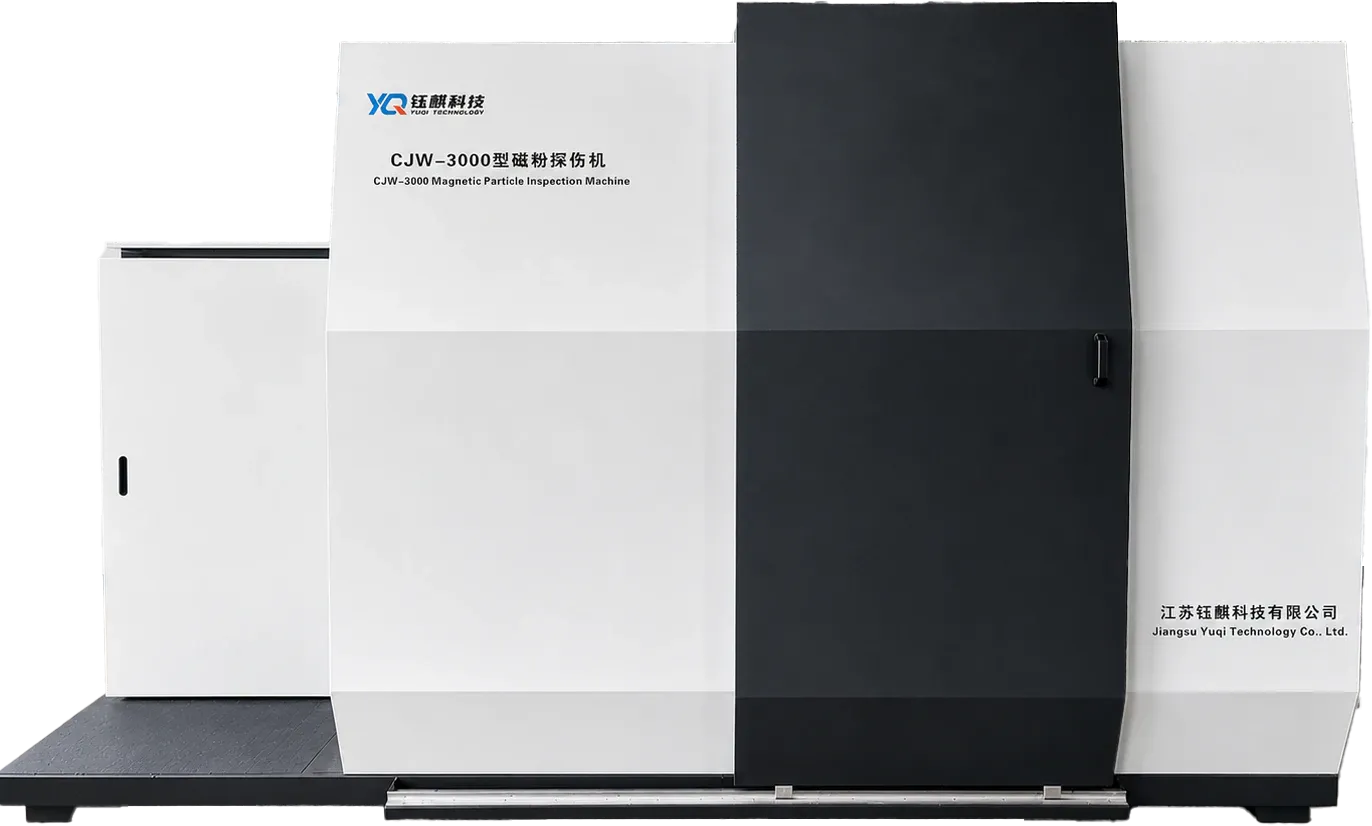

Stationary · Mixed workpieces
One AC/DC platform for a wide mix of workpiece types.
| Circular current | AC 0–3,000 A to DC 0–10,000 A | |||||
|---|---|---|---|---|---|---|
| Longitudinal field | AC 0–24,000 AT | |||||
| Sensitivity | A1 15/50, 30/100 · CX-430 | |||||
| Demagnetization | DC reversing · AC attenuation | |||||
Stationary · Forged blanks

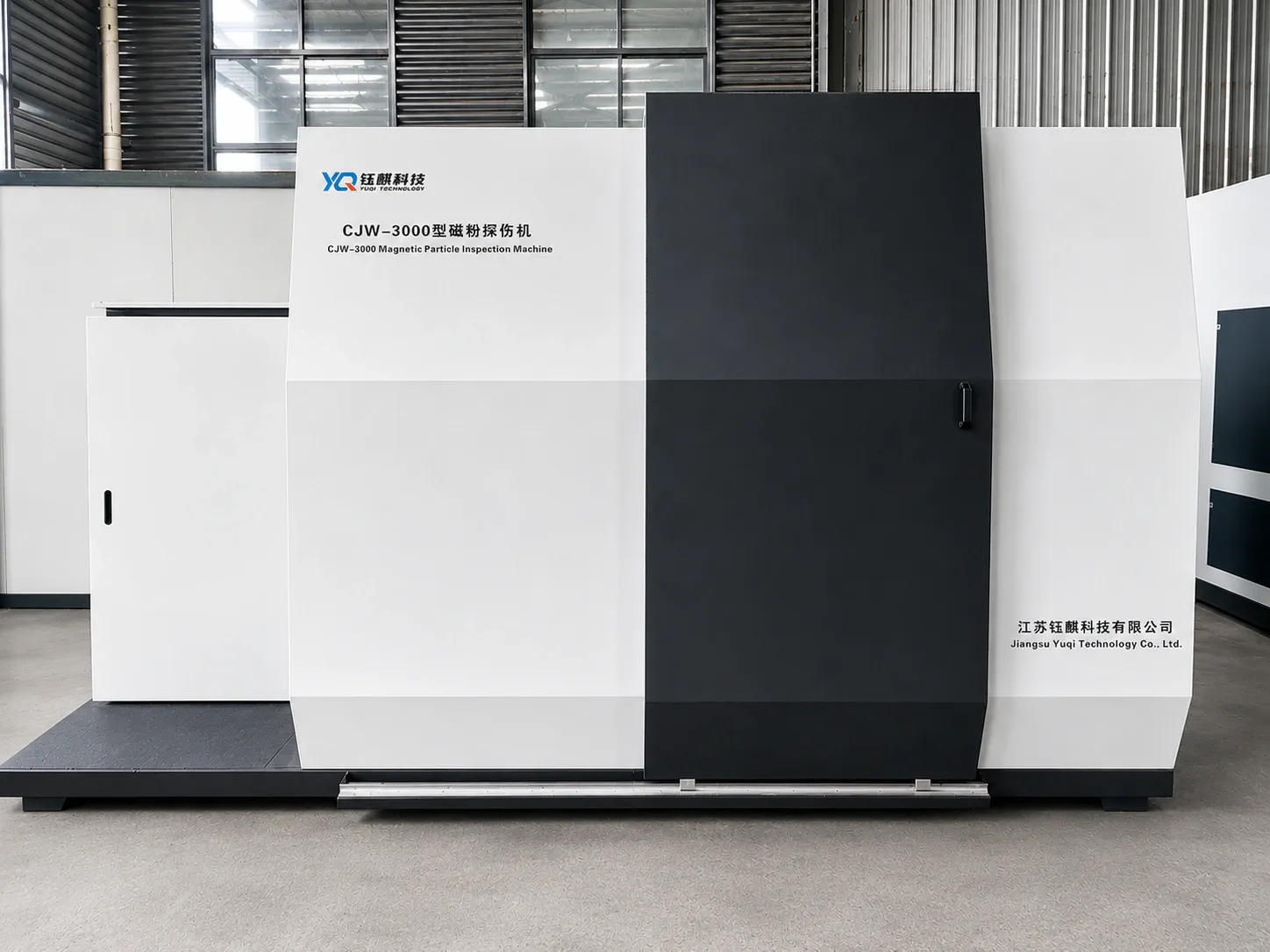

CJW-6000, CQE-6000, CJW-8000, CQE-8000, CJW-10000 and CQE-10000, for forged blanks up to Ø 600 mm and 1,200 mm long. The clamping mechanism is designed to reduce the risk of arcing.
| Rotational diameter | ≤ 600 mm | |||||
|---|---|---|---|---|---|---|
| Part length | ≤ 1,200 mm | |||||
| Circular current | AC/DC 0–10,000 A | |||||
| Longitudinal field | AC 0–24,000 AT | |||||
| Remanence | ≤ 0.2 mT | |||||

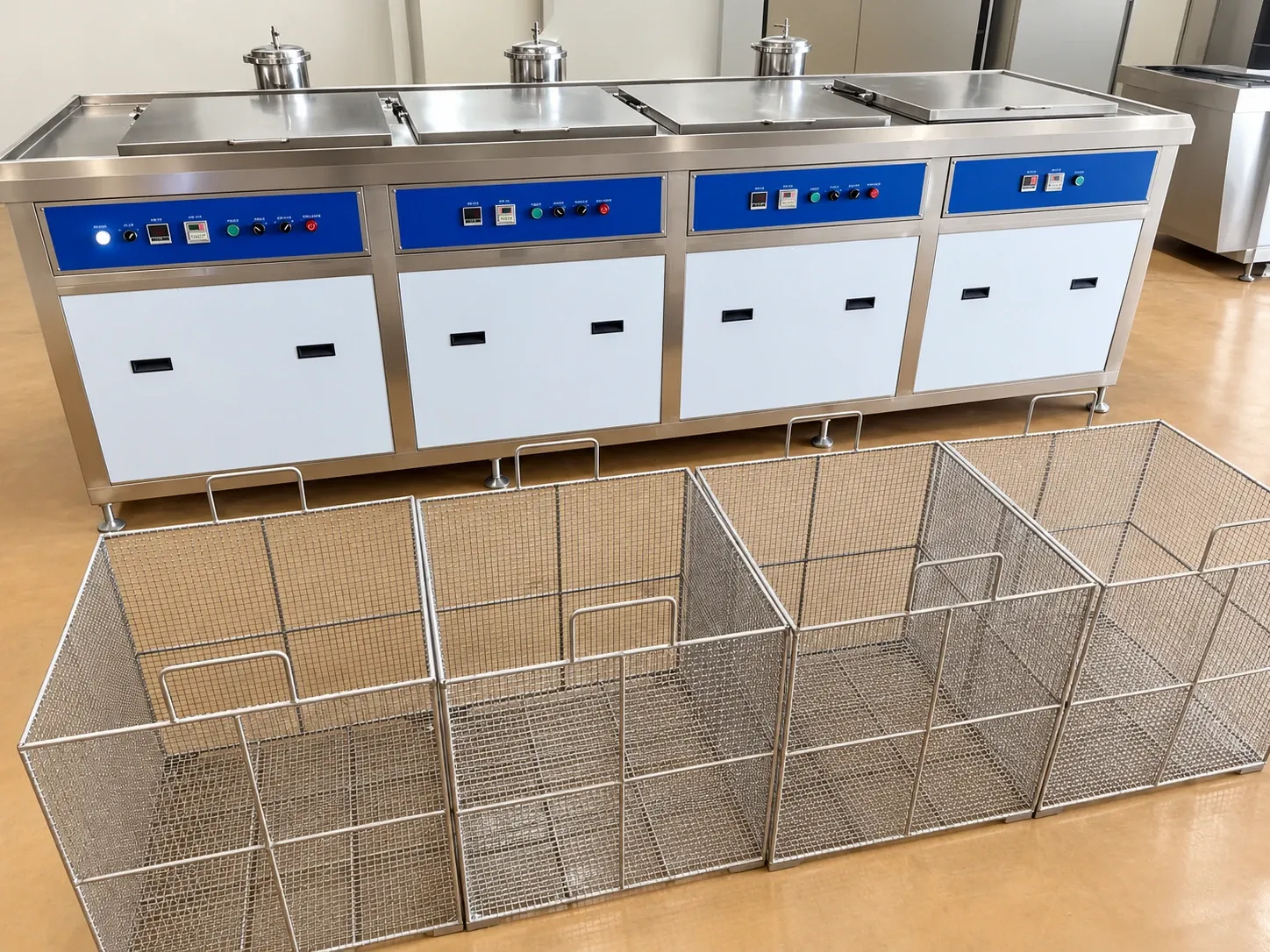

PT · Penetrant inspection and cleaning
A semi-automatic fluorescent and dye penetrant line covering cleaning, penetrant application, rinsing, development and inspection.
| Methods | FPI · DPI |
|---|---|
| Operation | Semi-automatic |
| Workpieces | Castings · forgings · welded parts |
MT · UV-A inspection accessories

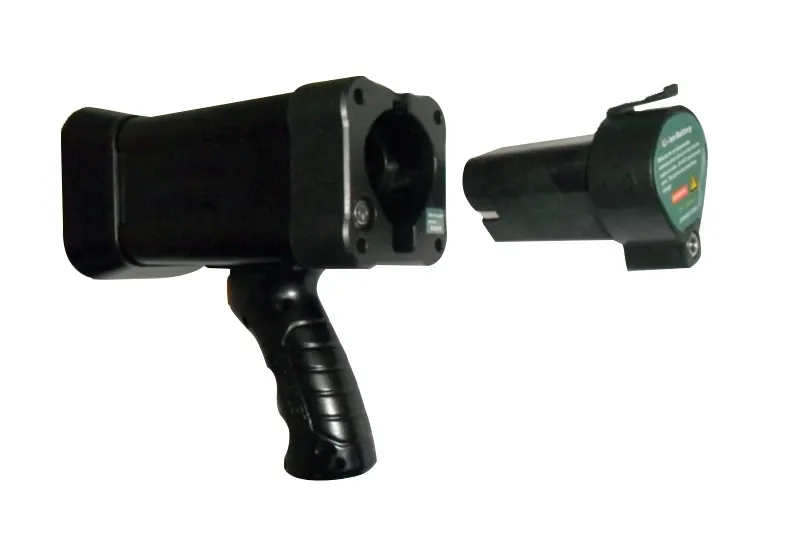

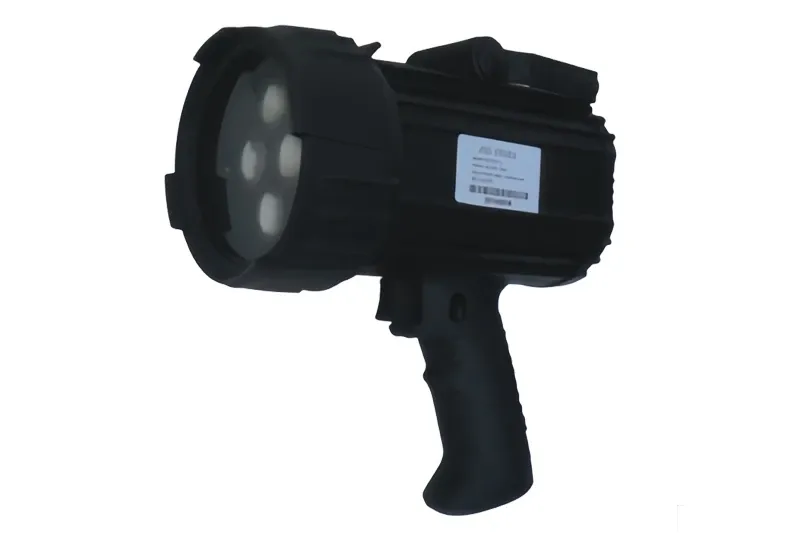

Two rechargeable handheld lights for fluorescent inspection: one UV-A model and one switchable UV-A and white-light model.
| SC100-10K | UVLED365-SJ4028-6K | |
|---|---|---|
| Light modes | UV-A | UV-A + white |
| UV-A irradiance | > 11,000 µW/cm² at 381 mm | 4,000–6,000 µW/cm² at 380 mm |
| Weight | 1.2 kg | 750 g |
SC100-10K details UVLED365-SJ4028-6K details
Ask about these lightsIndustries
The sectors served by our magnetic particle inspection machines.

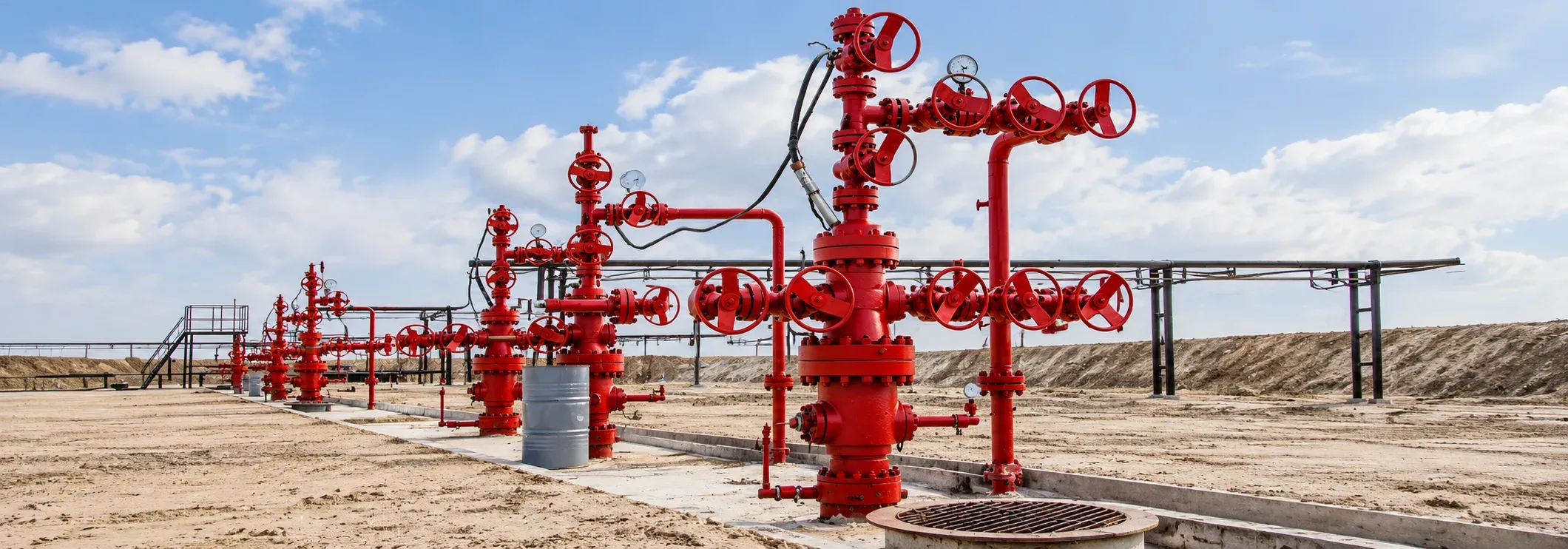

01 / 05 · Wellhead & pipelineInspection of petroleum pipelines and wellhead components on dedicated stationary machines.

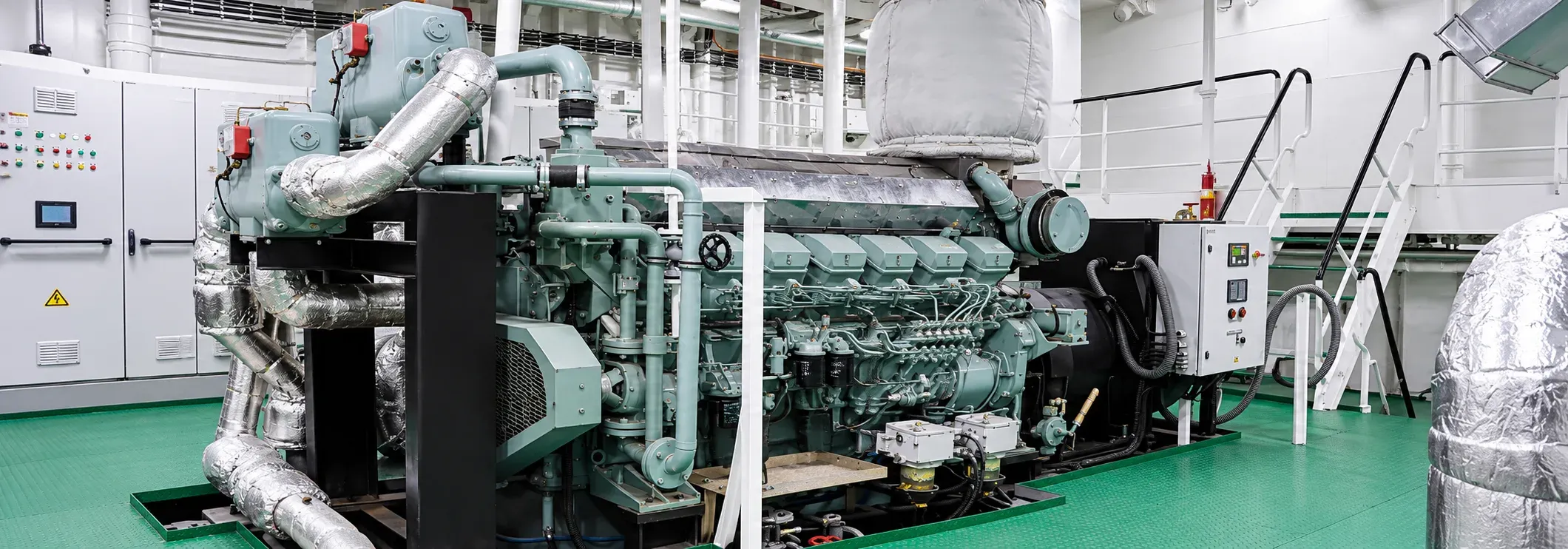

02 / 05 · Engine componentsMagnetic particle inspection of marine diesel engine components to ensure reliability and safety in demanding operating conditions.
03 / 05 · Rotating partsInspection of critical rotating parts for nuclear and wind power equipment.
04 / 05 · Castings & forgingsSurface and near-surface defect detection for quality control of mechanical components.
05 / 05 · Wheelsets & axlesMagnetic particle inspection of critical railway and locomotive components to ensure structural integrity, reliability, and operational safety.
Inspection workflow
A well-designed MPI process combines secure part handling with controlled magnetization and a clear inspection stage. System configuration is adapted to each workpiece and production workflow.
Clamp the part between the electrodes or on the support rollers, ready for full coverage.

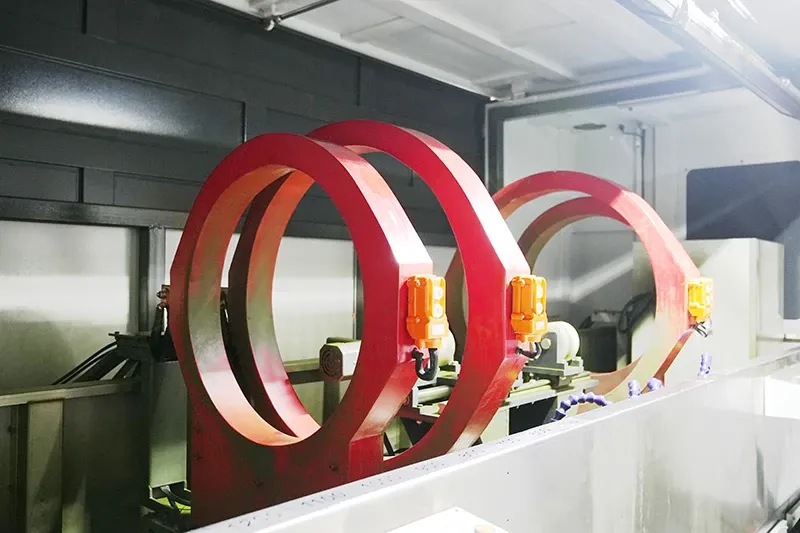

Apply circular, longitudinal or combined magnetization with AC, DC or AC/DC current.

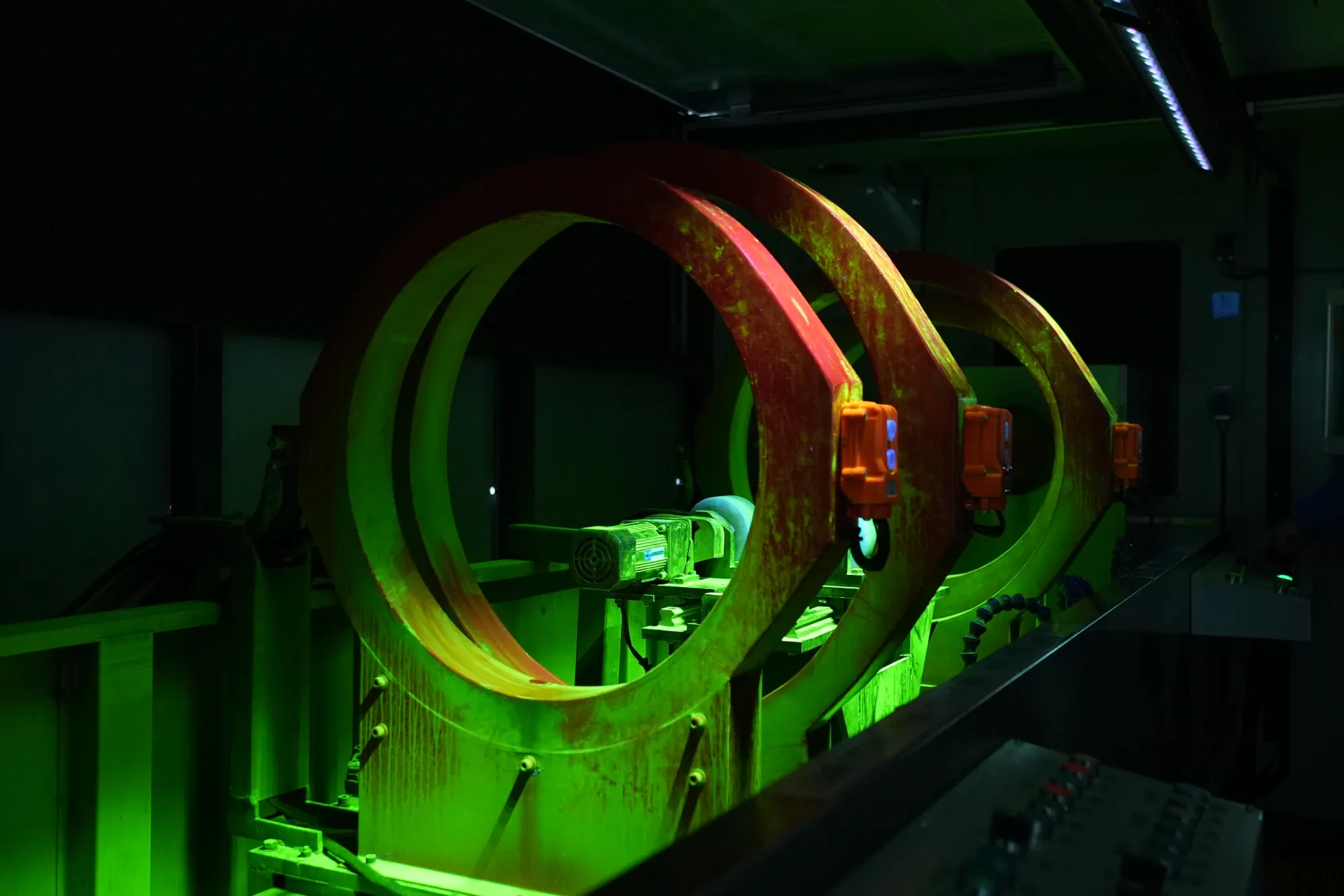

Spray the wet fluorescent magnetic suspension and look for indications under UV-A light.
Demagnetize the part and verify remanence before it moves on to the next process.
Who we are
Jiangsu Yuqi Technology is a key enterprise in the non-destructive testing industry, committed to quality standards, metrological compliance and lawful operation.
We design and manufacture portable, mobile, stationary and special-purpose magnetic particle and penetrant inspection machines — used in aerospace, railway, petroleum, internal combustion engine, pipeline, automotive and high-strength bolt manufacturing.
