Forged Blank Magnetic Particle Inspection Machine

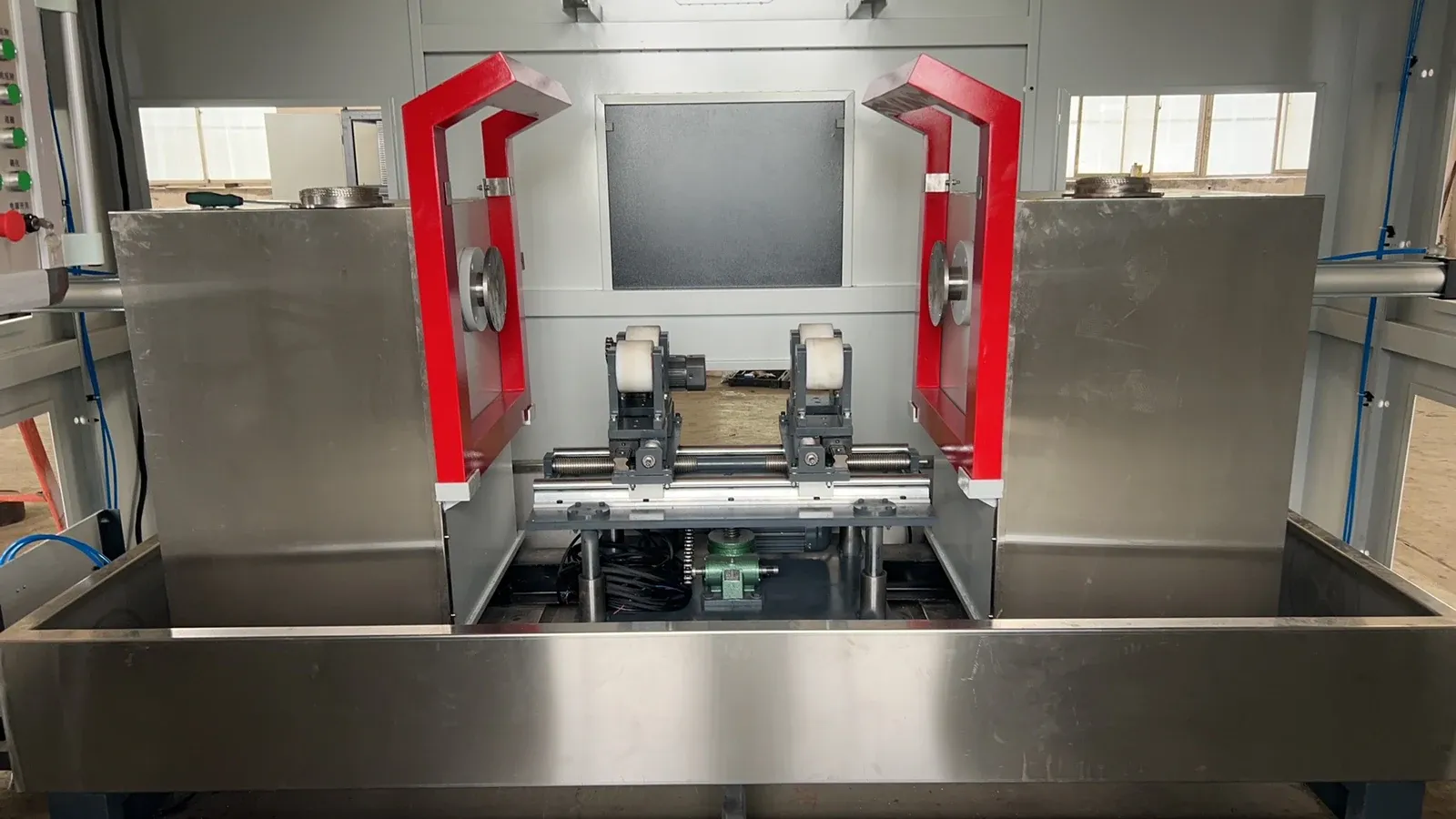

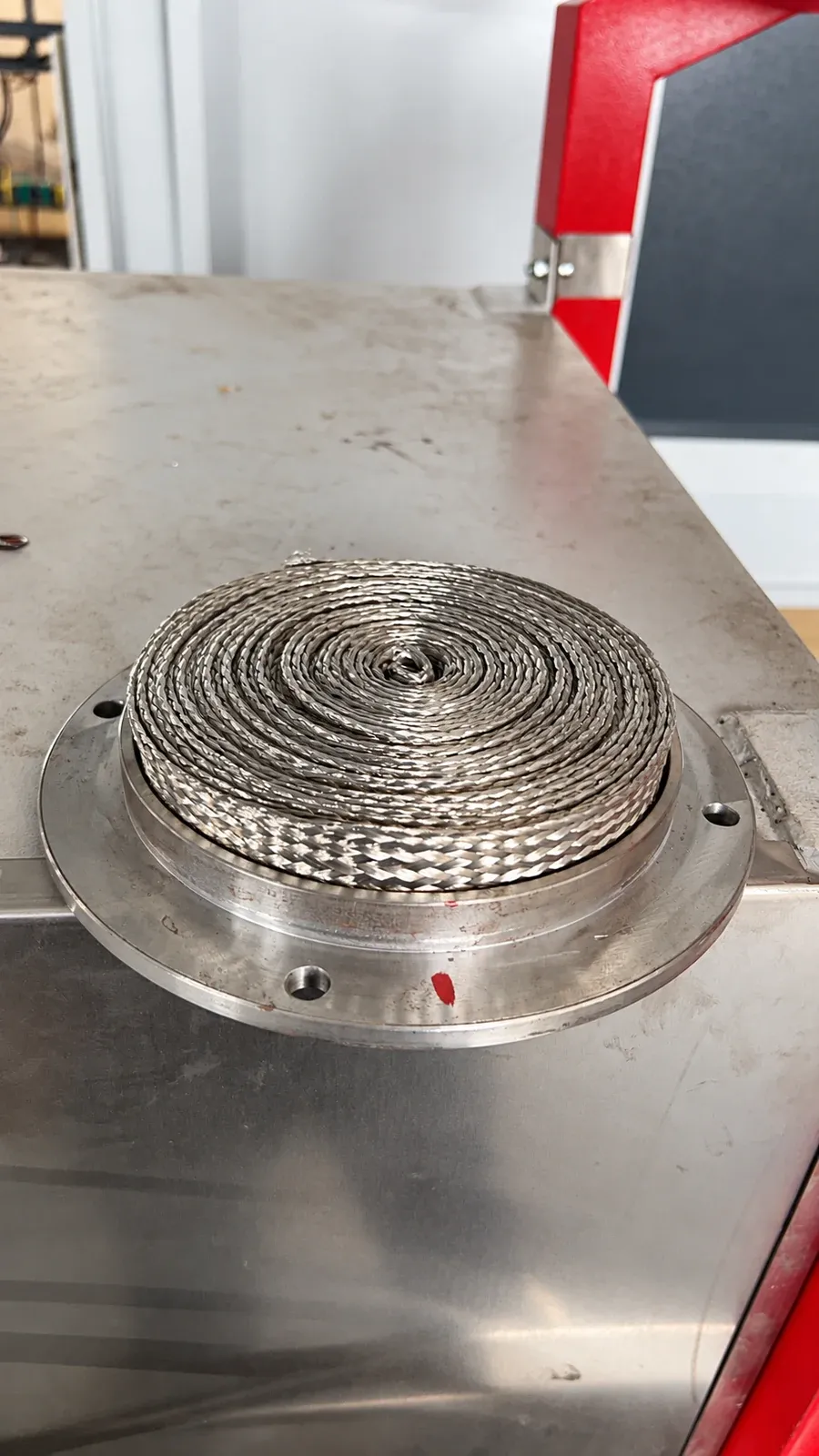

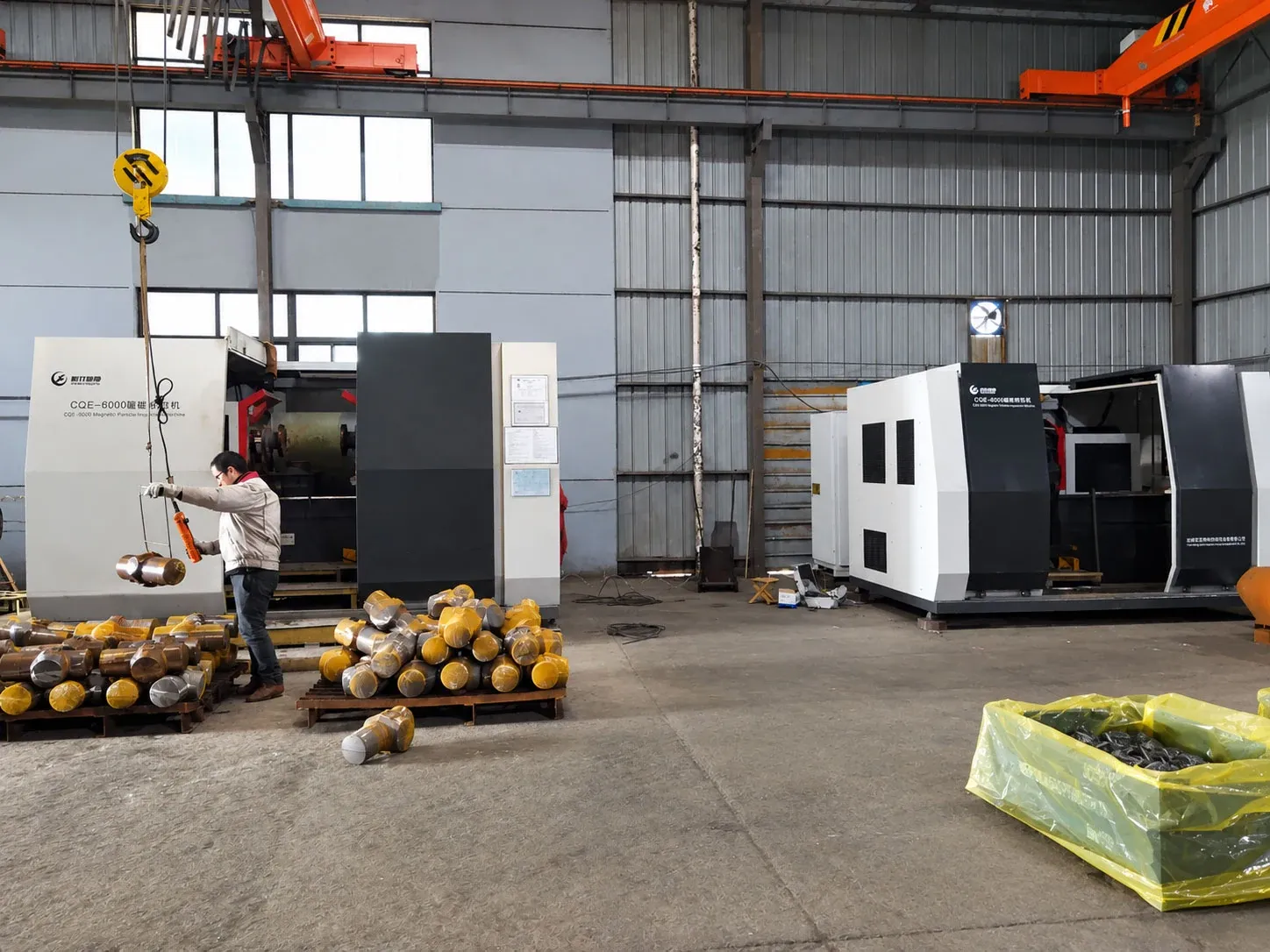

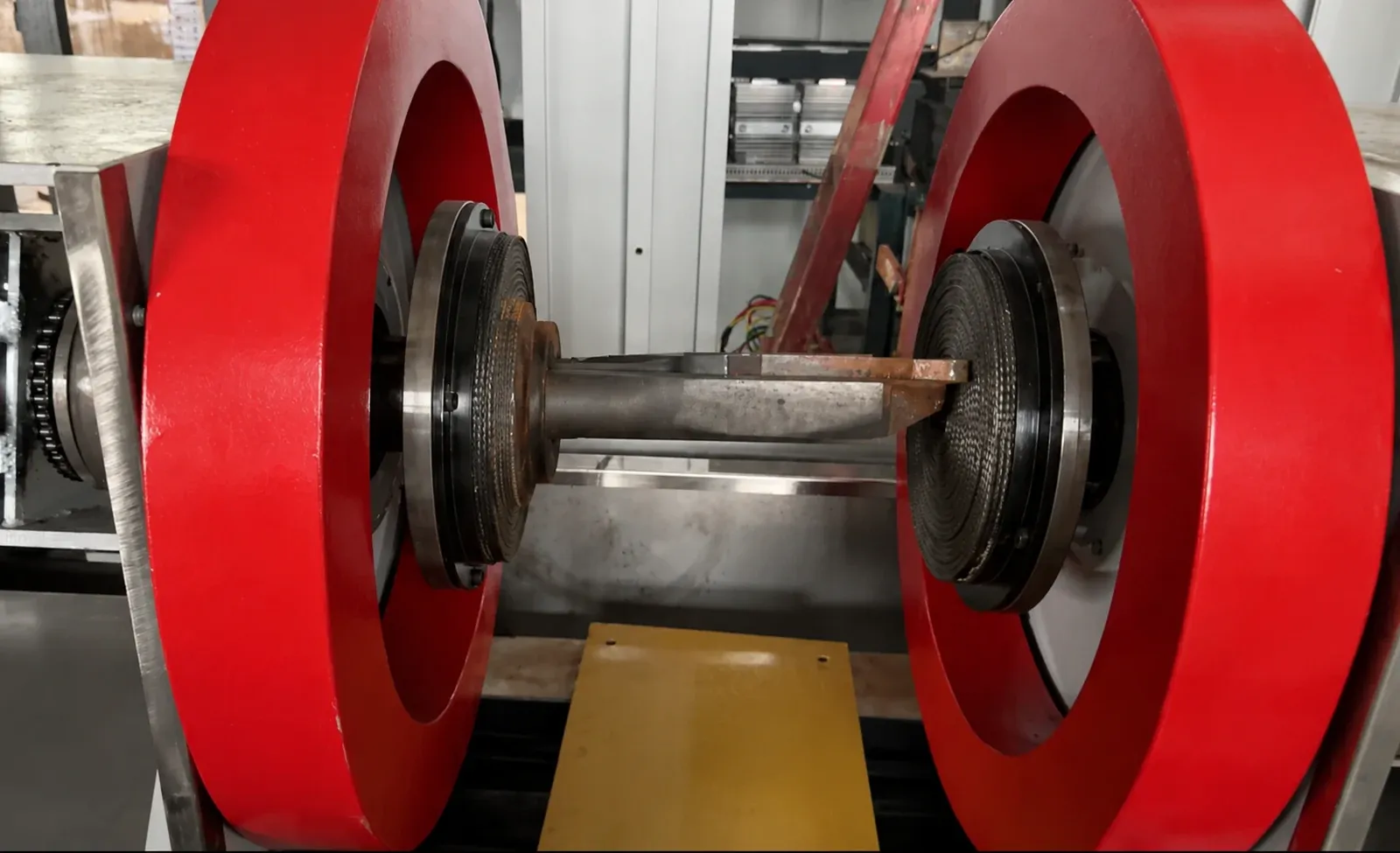

Forging magnetic particle inspection machines in six models — CJW-6000, CQE-6000, CJW-8000, CQE-8000, CJW-10000 and CQE-10000 — for forged blanks with a rotational diameter of up to 600 mm and a length of up to 1,200 mm. The specially designed clamping mechanism reduces the risk of electrical arcing.
- Forged blanks
CJW / CQE forged-blank series specifications
Magnetization
- Magnetization modes
- Three-phase full-wave DC, AC, AC/DC switching, combined magnetization
- Circular magnetization current
- AC/DC 0–10,000 A, adjusted on the touch screen
- Longitudinal field (centre of 3D magnetizer)
- AC 0–24,000 AT, adjusted on the touch screen
- Magnetization methods
- Circular, longitudinal, combined, multi-directional combined
Mechanics
- Rotational diameter
- ≤ 600 mm
- Part length
- ≤ 1,200 mm
- Magnetizer travel
- Electric drive
- Rotation
- Electric drive

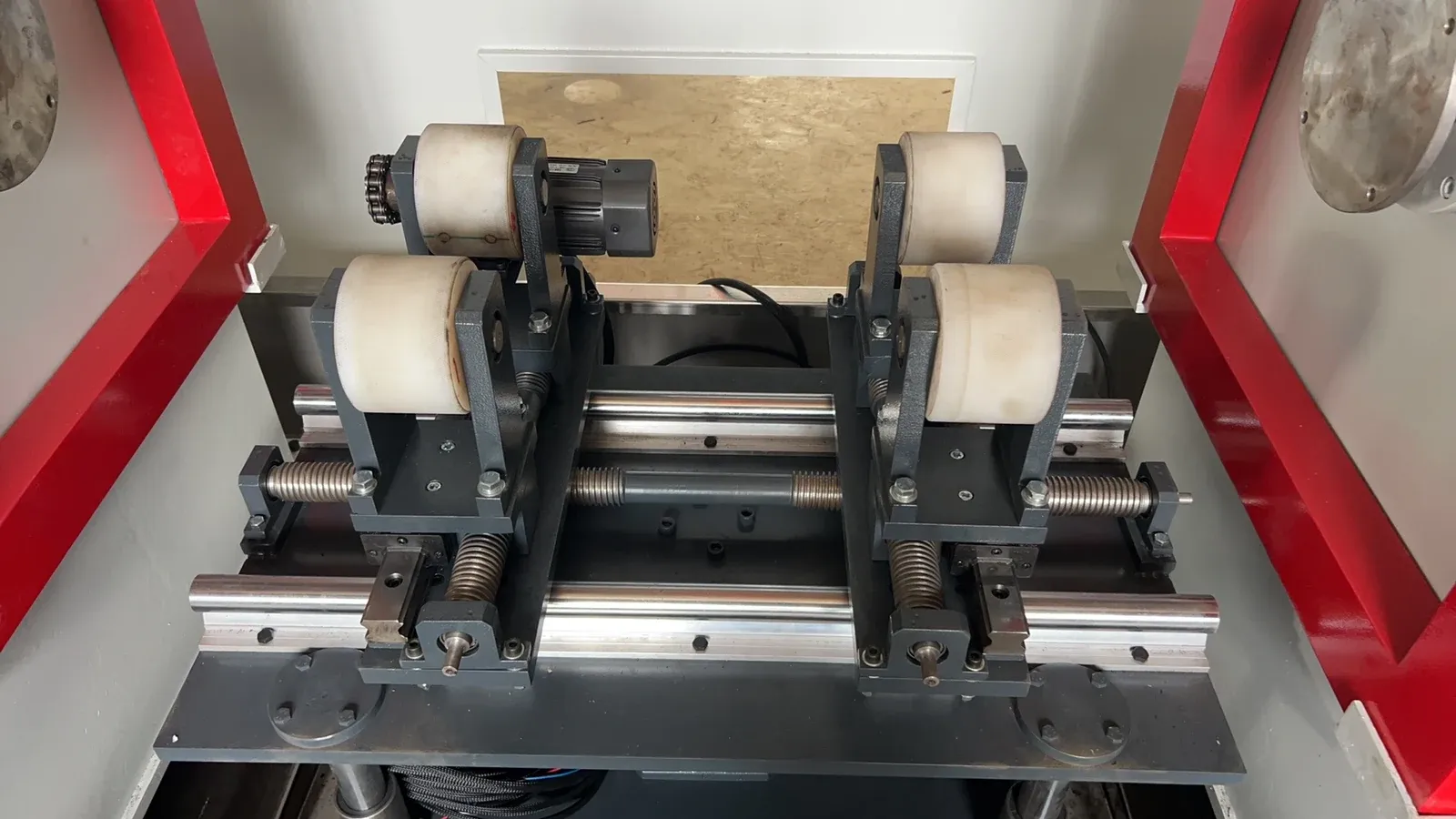

- Support bracket capacity
- 2,000 kg
Performance
- Sensitivity
- Clear indications on CX-430, 15/50 and 30/100 test pieces
- Demagnetization
- Ultra-low-frequency polarity reversing; remanence ≤ 0.2 mT
Installation
- Installation dimensions
- 4,300 × 2,800 × 2,200 mm
External coil port
Cable-wrap magnetization for oversized parts
Every machine's power cabinet has an external coil port. When a part is too large or heavy to load into the machine, connect a flexible cable to the port and wrap it around the part to form a coil, so the part can be magnetized where it stands.
Coil port
