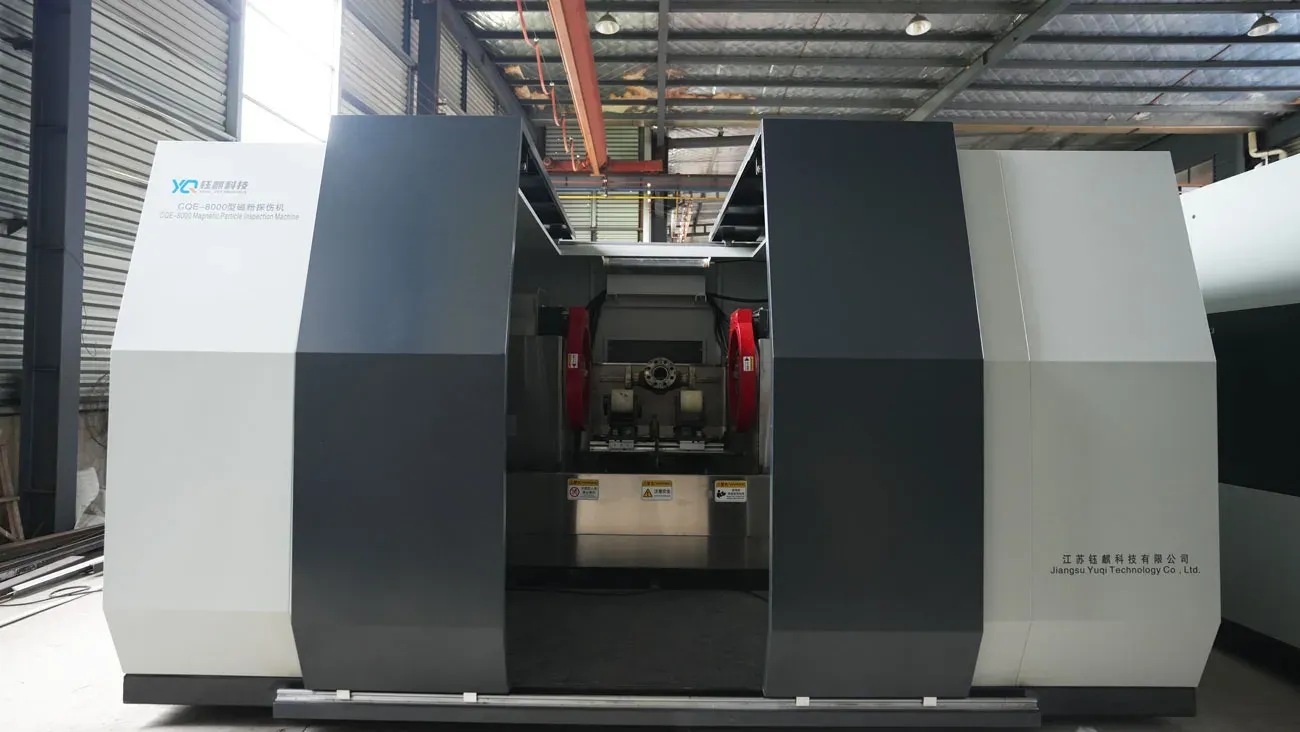

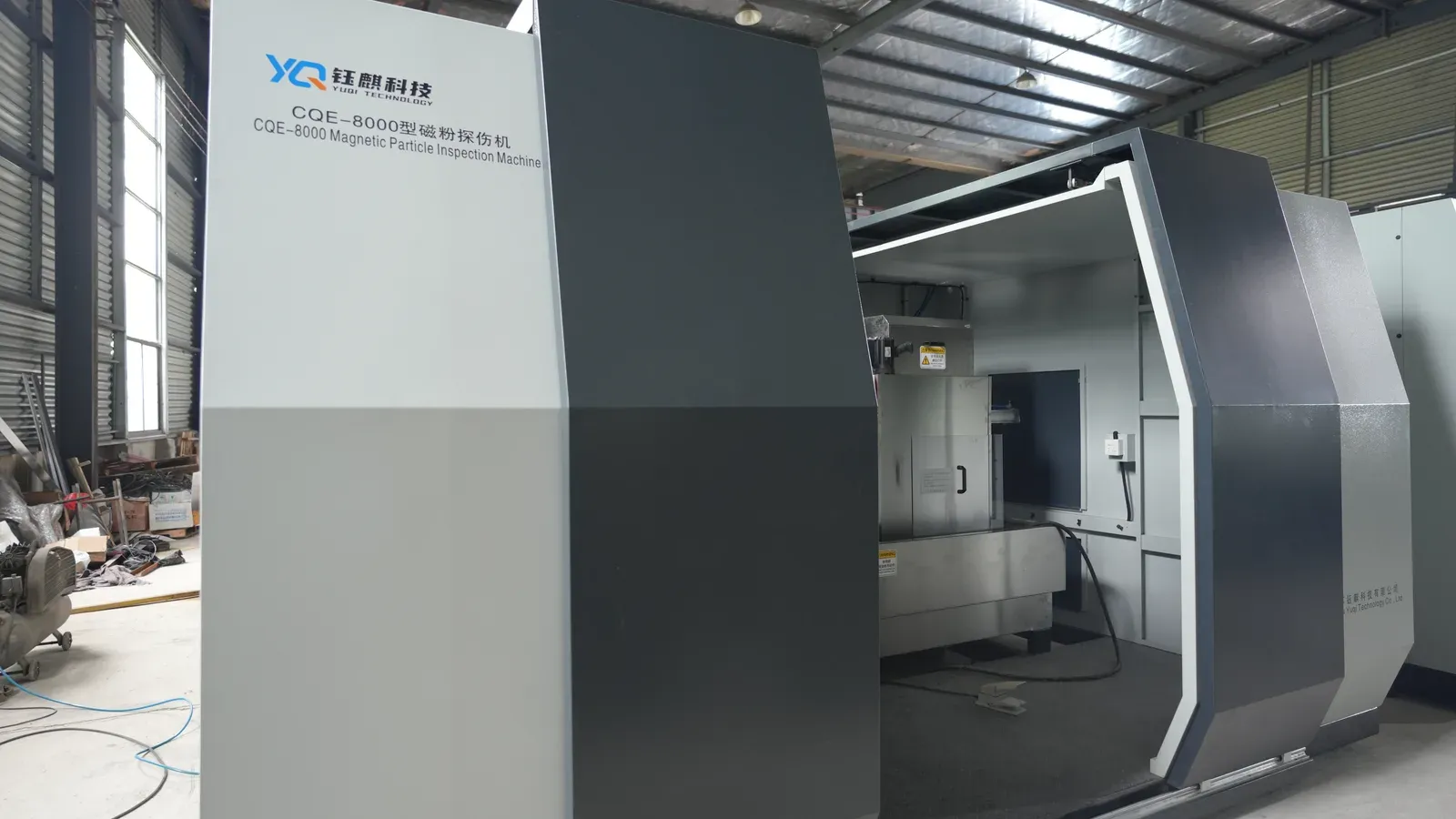

CQE-8000 Magnetic Particle Inspection Machine for Oilfield Parts
Stationary magnetic particle inspection machine for petroleum parts with a rotational diameter of 200–600 mm and a length of up to 1,000 mm, such as tubing heads, casing heads, tees, crosses and valve bodies.
- Tubing heads
- Casing heads
- Tees
- Crosses
- Valve bodies
CQE-8000 specifications
Magnetization
- Magnetization modes
- Three-phase full-wave DC, AC, AC/DC switching, combined magnetization
- Central conductor DC current
- DC 0–8,000 A, three-phase full-wave, adjusted on the touch screen
- Longitudinal field (centre of 3D magnetizer)
- AC 0–24,000 AT, adjusted on the touch screen
- Magnetization methods
- Circular, longitudinal, combined, multi-directional combined
Mechanics
- Magnetizer travel
- Electric drive
- Rotation
- Electric drive
- Support bracket capacity
- 2,000 kg
Performance
- Sensitivity
- Clear indications on CX-430 test pieces
- Demagnetization
- Ultra-low-frequency polarity reversing; remanence ≤ 0.2 mT
Installation
- Installation dimensions
- 4,300 × 2,800 × 2,200 mm

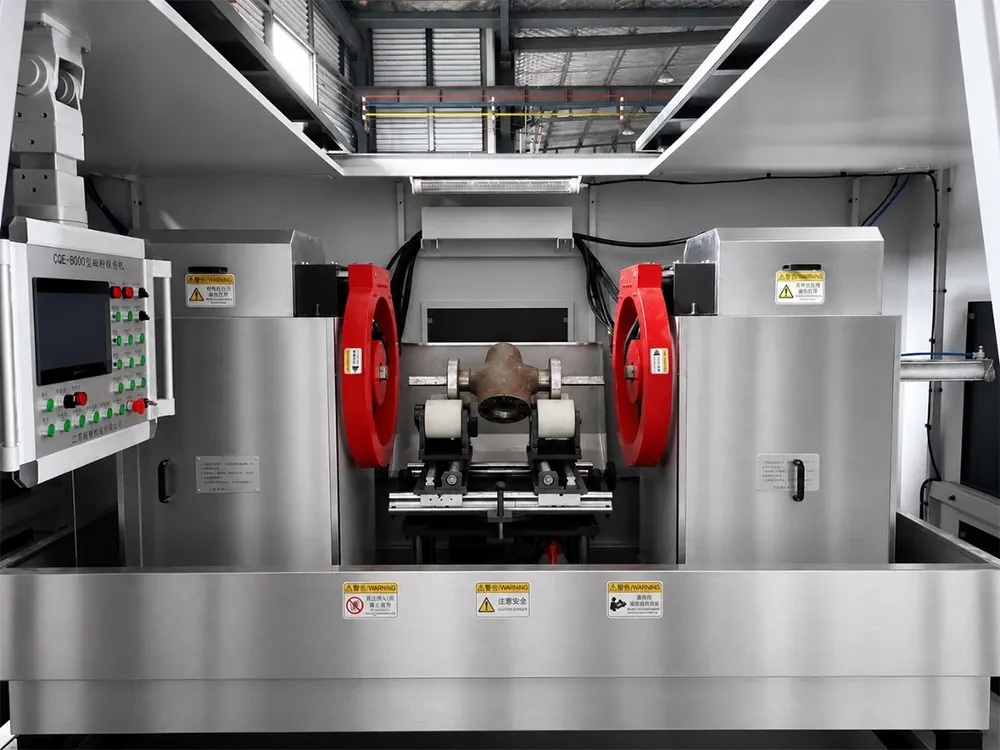

External coil port
Cable-wrap magnetization for oversized parts
Every machine's power cabinet has an external coil port. When a part is too large or heavy to load into the machine, connect a flexible cable to the port and wrap it around the part to form a coil, so the part can be magnetized where it stands.
Coil port
Magnetization results
Indications under UV-A light
Fluorescent magnetic particle indications on parts and standard test pieces, photographed under UV-A light.
