Portable rechargeable fluorescent inspection light
UVLED365-SJ4028-6K Portable Rechargeable Fluorescent Inspection Light (UV-A & White Light)
Handheld inspection light that switches between UV-A and white light, with two quick-swap lithium batteries.
Product details
Zero UV-B content
Battery life: 5–6 hours
Two 3,500 mAh high-capacity lithium batteries for quick replacement
Switch between UV-A and white light
Surface temperature rise in continuous operation < 8 K
Filter glass with colour-filtering function
White light content < 20 lx
Weight 750 g including battery
UVLED365-SJ4028-6K specifications
General
- Type
- Portable
Optical

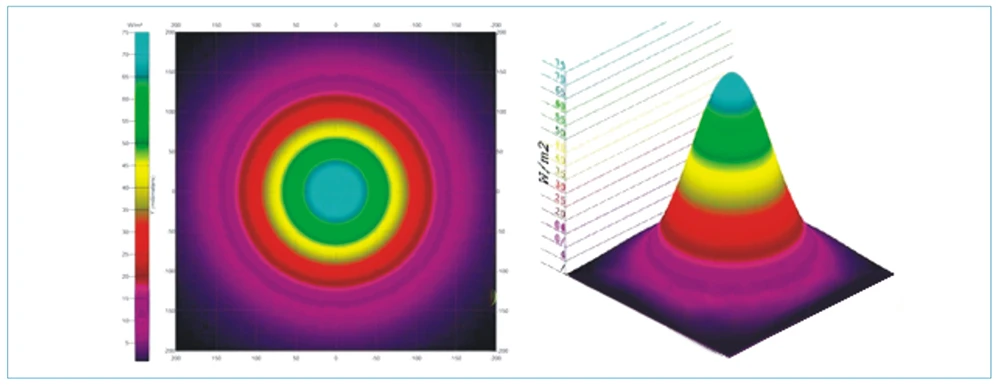

- UV flux at 380 mm (25 °C)
- 4,000–6,000 µW/cm²
- Coverage at 381 mm
- About Ø 250 mm
- White light intensity
- 400–1,500 lx
- White light content (UV mode)
- ≤ 20 lx
- Flux error
- ±10% at 0–40 °C
- Light distribution
- Central
- Wavelength
- 365 ± 3 nm (UV-A) at 25 °C
Power
- Power
- UV LED 9 VA · white light 3 VA
- Power supply
- AC 100–240 V, 50/60 Hz
- Battery capacity
- 6,800 mAh, 12.6 V
- Charging time
- 3–4 h
- Battery life
- 5–6 h UV LED, or 7 h white light
Dimensions

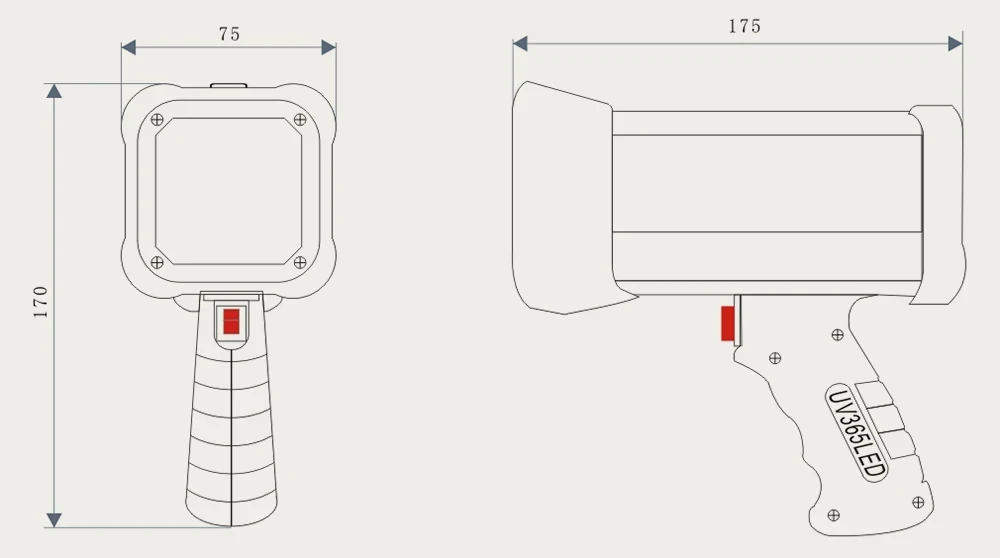

- Overall dimensions
- 160 (W) × 75 (D) × 170 (H) mm
- Weight
- 750 g
