CQE-15000 / CQE-12000 Magnetic Particle Inspection Machine — Main and Auxiliary Units

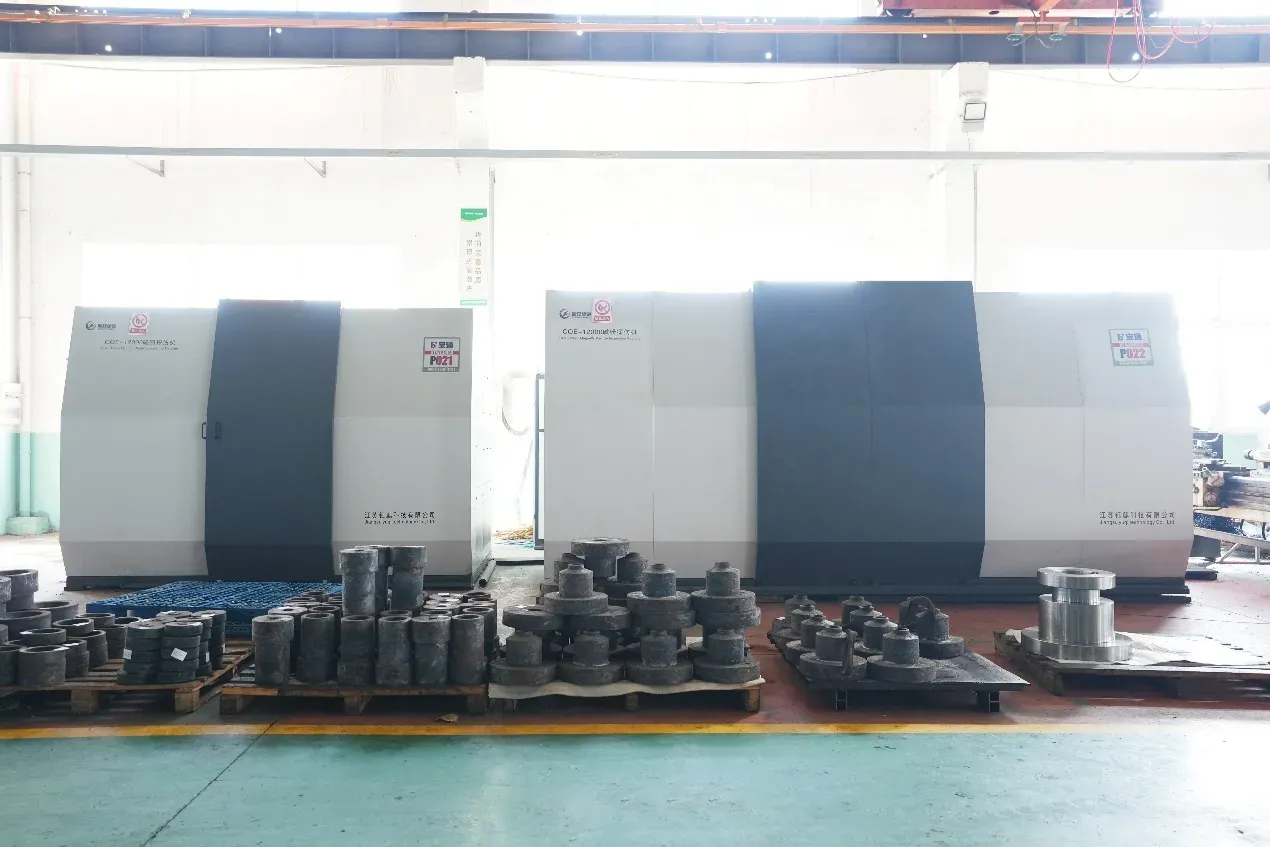

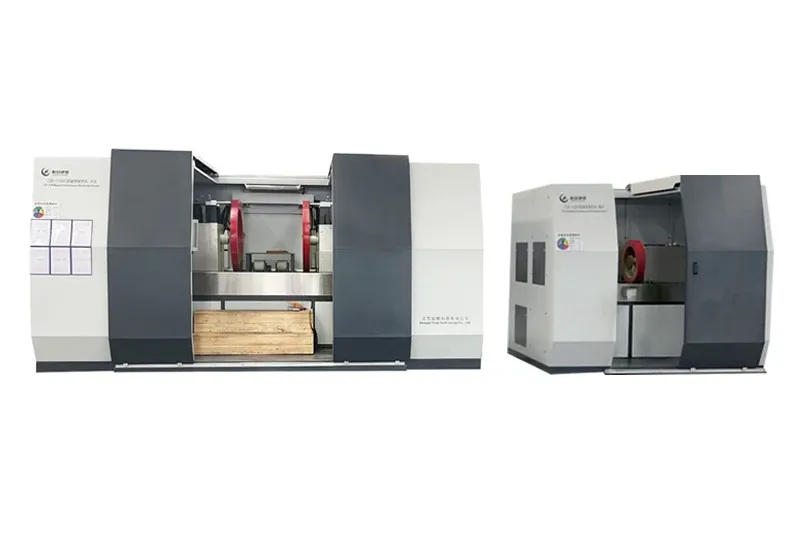

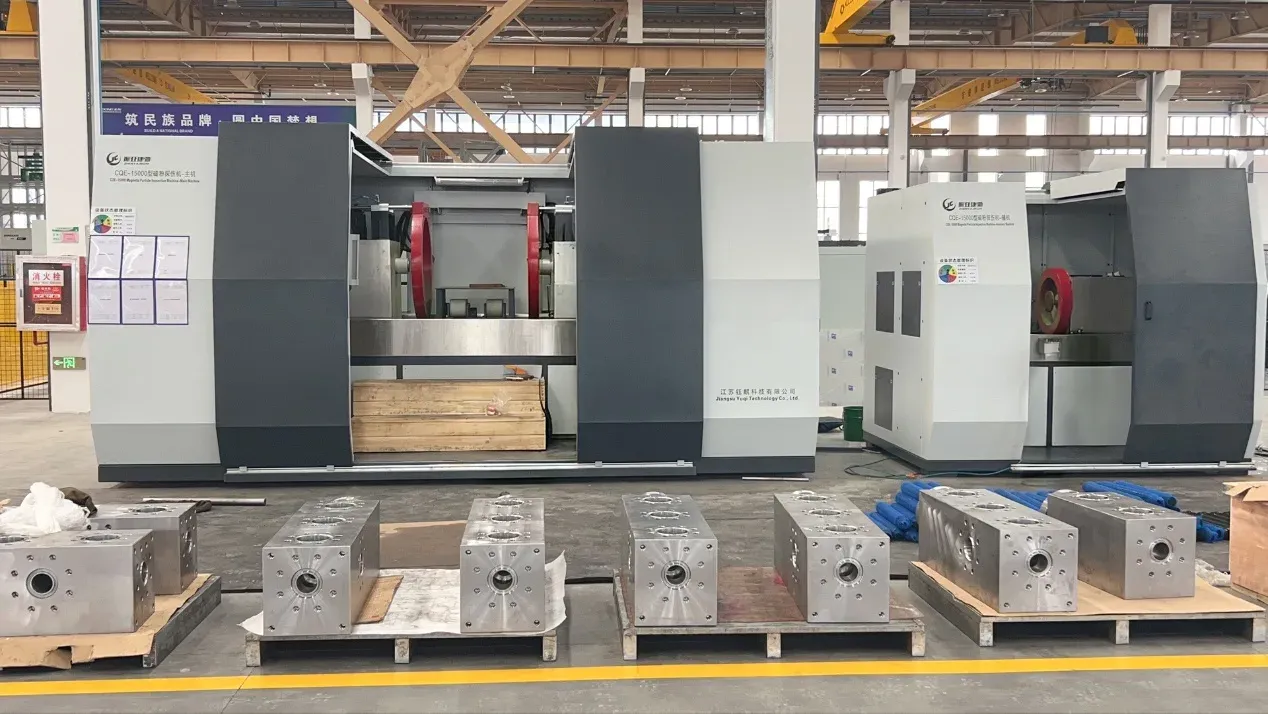

A CQE-15000 main unit for large parts and a CQE-12000 auxiliary unit for small parts share one standardized power cabinet. The system is widely used in aerospace, military, railway, petroleum pipeline, internal combustion engine, automotive and high-strength bolt manufacturing.

Aerospace
Military
Railway
Petroleum pipelines
Combustion engines
Automotive
High-strength bolts

Request a quote for CQE-15000 / 12000

Magnetization

Magnetization modes: Three-phase full-wave DC, AC, AC/DC switching, combined magnetization
Central conductor DC current: DC 0–15,000 A (main) / 0–12,000 A (auxiliary), three-phase full-wave, adjusted on the touch screen
Longitudinal field (centre of 3D magnetizer): AC 0–24,000 AT, adjusted on the touch screen
Magnetization methods: Circular, longitudinal, combined, multi-directional combined

Mechanics

Magnetizer travel: Electric drive
Rotation: Electric drive

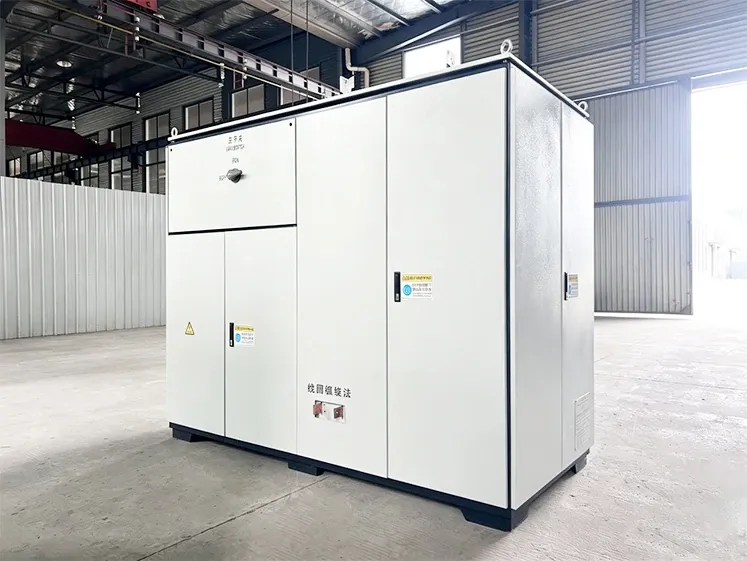

Power cabinet: One standardized electrical cabinet shared by both units

Performance

Sensitivity: Clear indications on CX-430 test pieces
Demagnetization: Ultra-low-frequency polarity reversing; remanence ≤ 0.2 mT

External coil port

Cable-wrap magnetization for oversized parts

Every machine's power cabinet has an external coil port. When a part is too large or heavy to load into the machine, connect a flexible cable to the port and wrap it around the part to form a coil, so the part can be magnetized where it stands.
