Portable rechargeable LED UV light
SC100-10K Portable Rechargeable LED UV Light
Handheld UV-A inspection light with quartz and optical-glass optics, 9 VA power draw and instant full output.
Product details
Quartz and optical-glass modules (non-PMMA) with excellent weathering resistance
Energy efficient: power consumption of only 9 VA
20,000-hour average light source life
Zero UV-B content
Surface temperature rise in continuous operation < 10 K
Instant 100% output, no warm-up

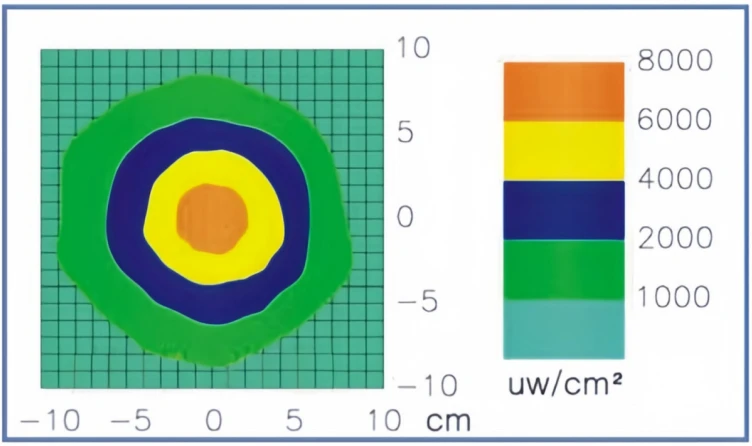

Central irradiance above 8,000 µW/cm² at 381 mm
Coverage about 250 × 300 mm above 2,000 µW/cm² at 381 mm
SC100-10K specifications
General
- Type
- Portable
Optical
- UV-A irradiance
- > 11,000 µW/cm² at 381 mm
- Flux error
- ±10% at 0–40 °C
- Light distribution
- Central; white light max. 100 lm
- Wavelength
- 365 ± 3 nm (UV-A) at 25 °C
Power
- Power
- UV LED 9 W

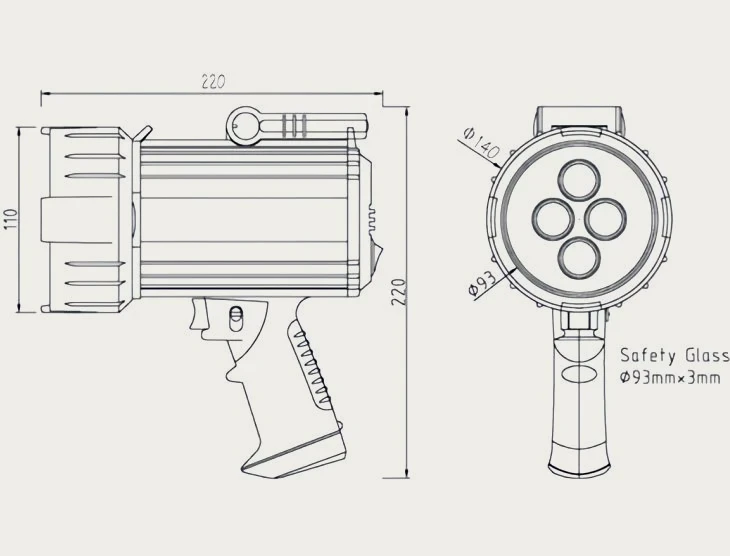

Dimensions
- Lamp head diameter
- 140 mm
- Weight
- 1.2 kg
Inquiry
Tell us about your workpiece.
Share the component, dimensions, material and inspection workflow. An engineer will recommend a configuration.
