Magnetic particle inspection machine
CQE-8000 Magnetic Particle Inspection Machine for Shafts & Pipelines

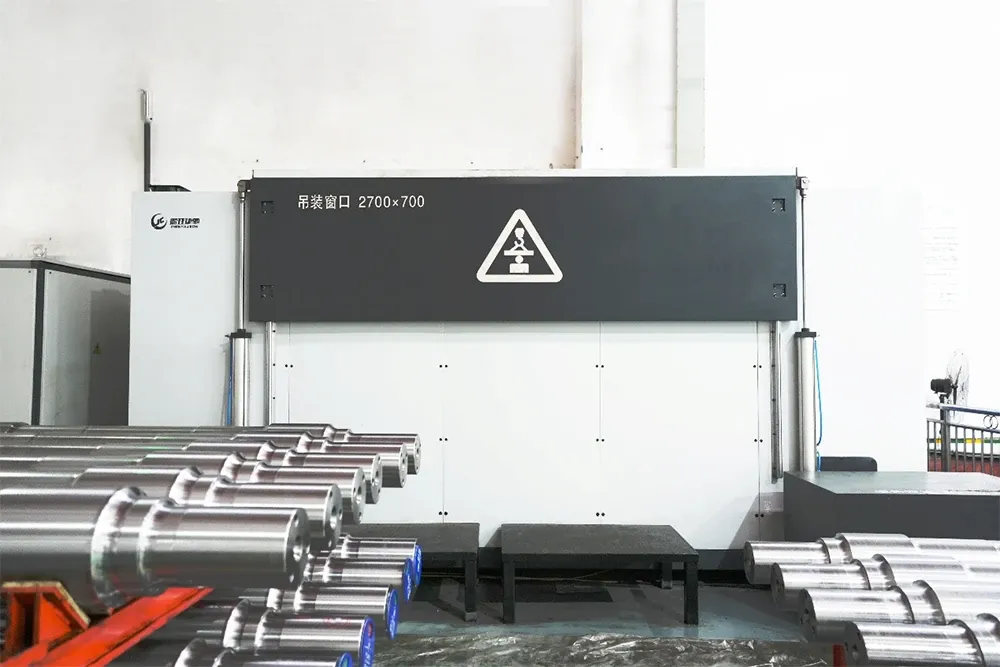

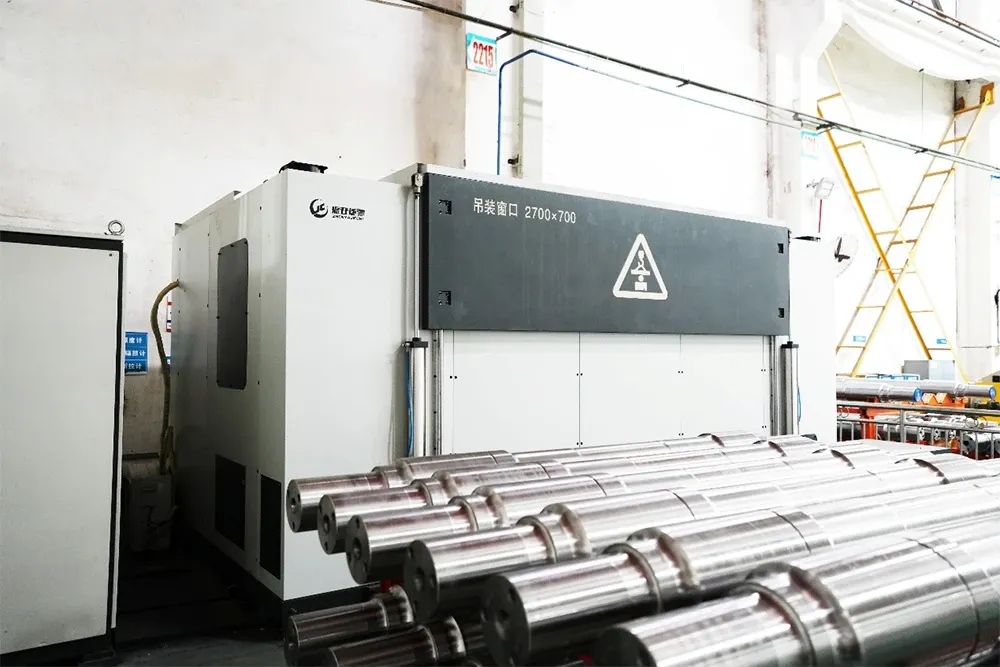

Stationary magnetic particle inspection machine for shafts, crankshafts, pipelines and other parts with a rotational diameter of up to 500 mm and a length of up to 4,000 mm.
- Shafts
- Crankshafts
- Pipelines
CQE-8000 specifications
Magnetization
- Magnetization modes

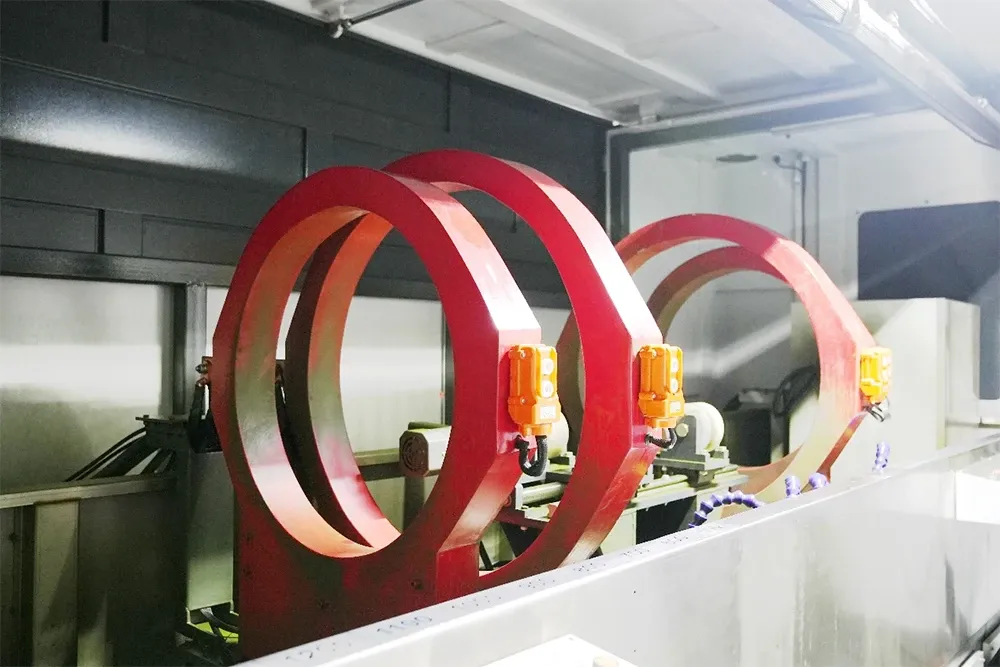

- Three-phase full-wave DC, AC, AC/DC switching, combined magnetization
- Central conductor DC current
- DC 0–8,000 A, three-phase full-wave, adjusted on the touch screen
- Longitudinal field (centre of 3D magnetizer)
- AC 0–24,000 AT, adjusted on the touch screen
- Magnetization methods
- Circular, longitudinal, combined, multi-directional combined
Mechanics
- Magnetizer travel
- Electric drive
- Rotation
- Electric drive
- Support bracket capacity
- 5,000 kg
Performance
- Sensitivity
- Clear indications on A1 15/50, 30/100 and CX-430 test pieces
- Demagnetization
- Ultra-low-frequency polarity reversing; remanence ≤ 0.2 mT
Installation
- Installation dimensions
- 6,300 × 3,000 × 2,300 mm
External coil port
Cable-wrap magnetization for oversized parts
Every machine's power cabinet has an external coil port. When a part is too large or heavy to load into the machine, connect a flexible cable to the port and wrap it around the part to form a coil, so the part can be magnetized where it stands.
