STYQ-1000 Fluorescent & Dye Penetrant Inspection Line
Semi-automatic penetrant inspection line using fluorescent (FPI) and dye (DPI) penetrant methods to find surface-breaking discontinuities in non-porous materials — metals, castings, forgings, machined and welded parts, and non-porous non-metallic materials.
- Castings
- Forgings
- Machined parts
- Welded parts
- Non-porous non-metallics
Product details
The STYQ-1000 Fluorescent & Dye Penetrant Inspection Line is a semi-automatic non-destructive testing (NDT) system using fluorescent penetrant inspection (FPI) and dye penetrant inspection (DPI) technologies to detect surface-breaking discontinuities in non-porous materials. The system is widely used for inspecting metallic materials, castings, forgings, machined components, welded parts, and various non-porous non-metallic materials. It effectively detects cracks, porosity, laps, seams, and other surface defects while significantly improving inspection quality, productivity, and process consistency.

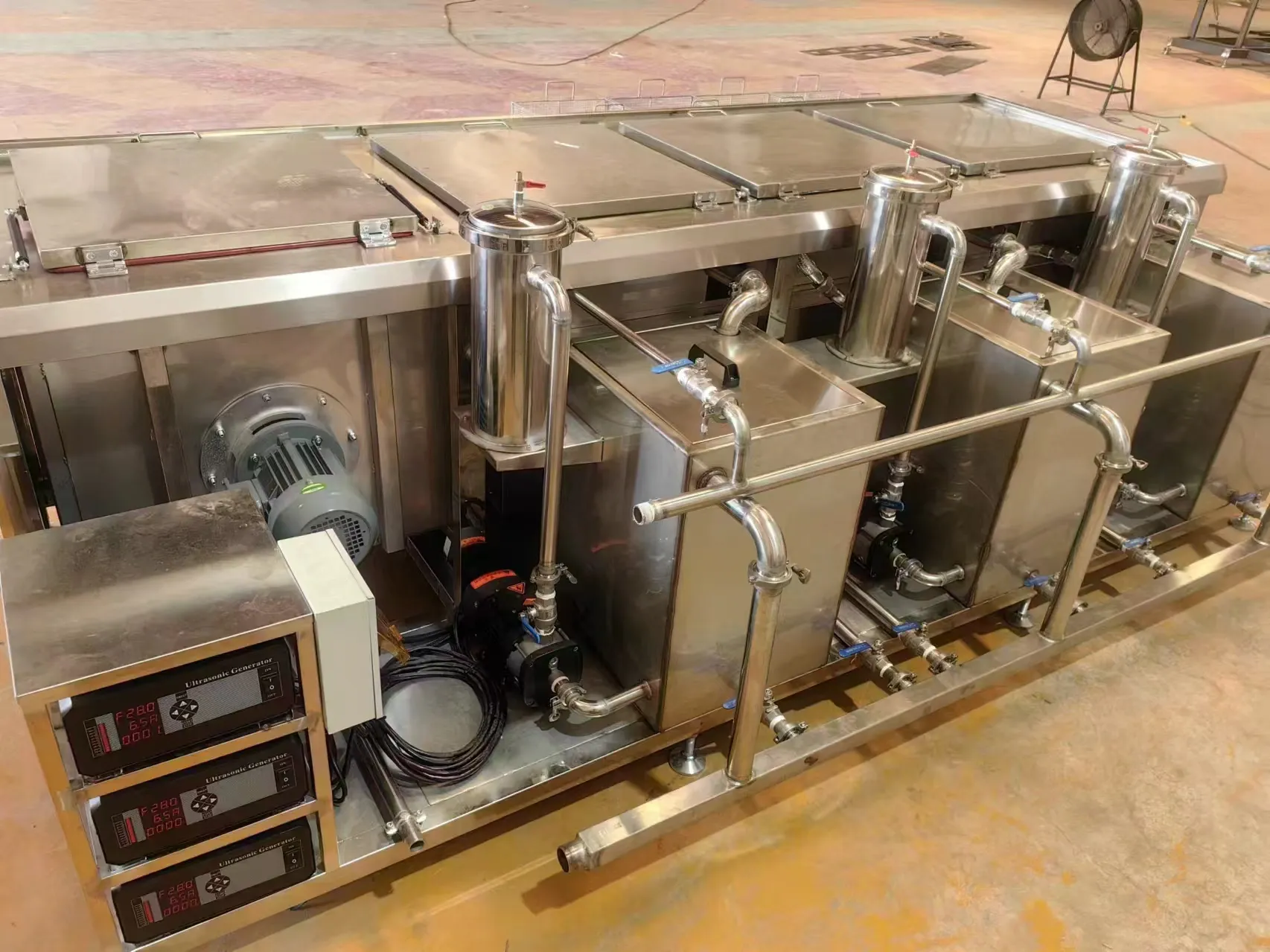

The STYQ-1000 inspection line provides a semi-automatic inspection process covering cleaning, drying, penetrant application, emulsification, rinsing, developer application, inspection, and post-cleaning, greatly improving inspection quality and production efficiency.
STYQ-1000 specifications
Magnetization
- Methods
- Fluorescent penetrant (FPI) and dye penetrant (DPI)
- Operation
- Semi-automatic
- Process stages
- Cleaning, drying, penetrant application, emulsification, rinsing, developer application, inspection and post-cleaning
- Standard workflow
- Pre-cleaning → ultrasonic cleaning → hot-air drying → penetrant application → drain → emulsification → hot-water rinsing → hot-air drying → developer application → darkroom inspection → final hot-water cleaning
- Detectable defects
- Cracks, porosity, laps, seams and other surface-breaking defects
