Suspended MPI inspection light (90 W)
UVLED365-SJ5048 Magnetic Particle Inspection Light (90 W)
Suspended 1.5 m UV-A bar light for inspection booths, with 30 × 3 W LEDs and even irradiance.
Product details
Excellent UV uniformity
Highly energy efficient
30,000-hour average light source life
UV-A irradiance > 3,000–4,000 µW/cm²
Zero UV-B / UV-C content
White light content < 22 lx
Surface temperature rise in continuous operation < 8 K
UVLED365-SJ5048 specifications
General
- Type
- Suspended
Optical

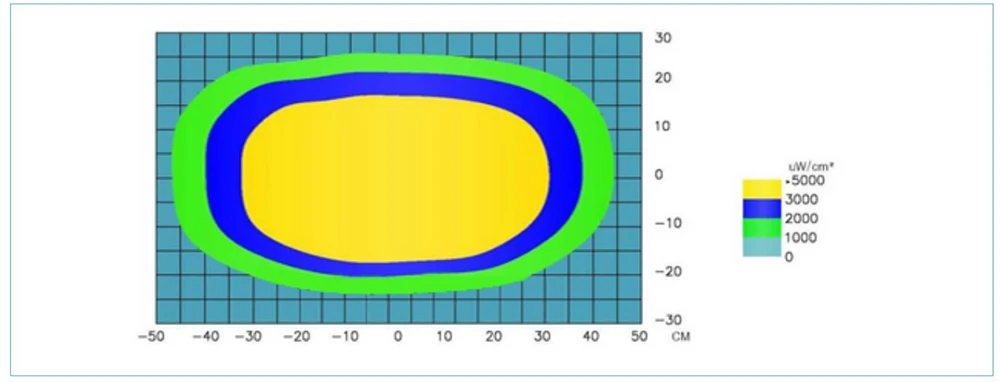

- UV flux at 380 mm (25 °C)
- > 3,000–6,000 µW/cm²
- Effective coverage at 380 mm (25 °C)
- 400–1,550 lx
- Wavelength
- 365 ± 3 nm (UV-A) at 25 °C
- White light content
- < 22 lx
- UV-B / UV-C
- None
- Flux error
- ±10% at 0–40 °C
- Light distribution
- Central
Power
- Power supply
- AC 220–240 V, 50/60 Hz
- Power
- UV LED 90 VA (30 × 3 W)

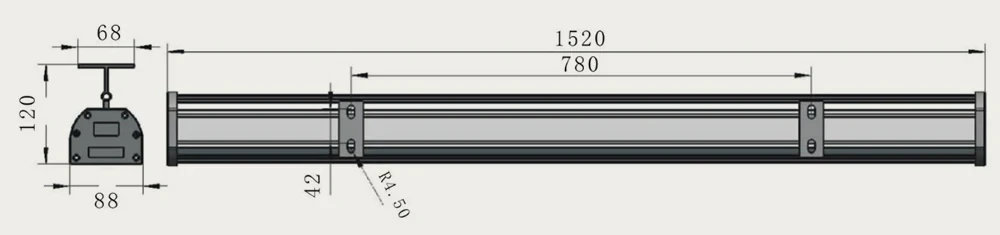

Dimensions
- Overall dimensions
- 1,520 (W) × 88 (D) × 120 (H) mm
- Weight
- 3.5 kg
