Magnetic particle inspection machines, UV-A lights & penetrant line

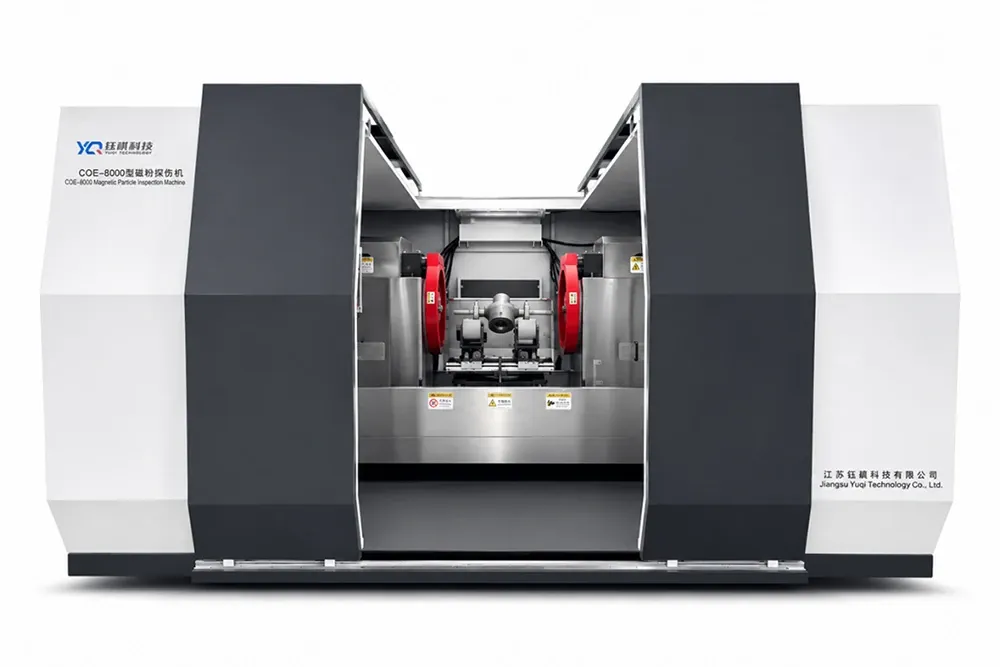

Oilfield Parts
CQE-8000
Ø ≤ 600 mmMagnetic Particle Inspection Machine
Tubing heads, casing heads, tees, crosses and valve bodies up to Ø 600 mm.

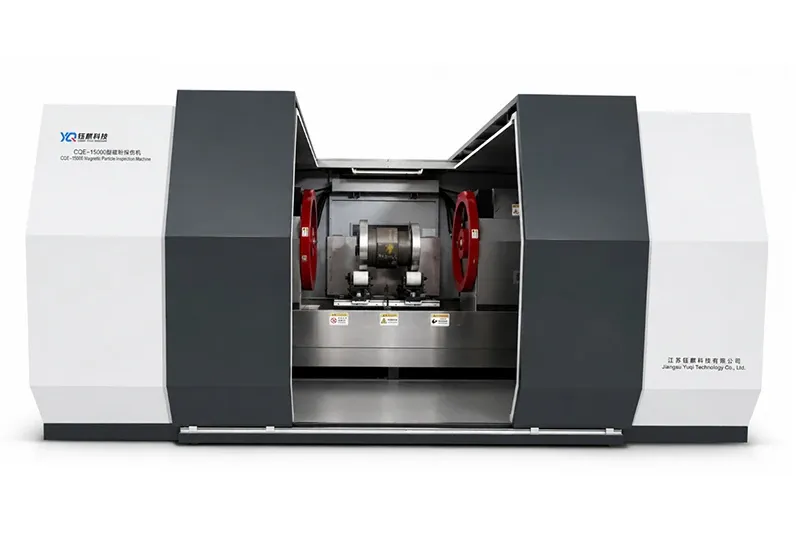

Oilfield Parts
CQE-15000
Ø ≤ 1,000 mmMagnetic Particle Inspection Machine
Larger wellhead and valve parts up to Ø 1,000 mm and 1,500 mm long.

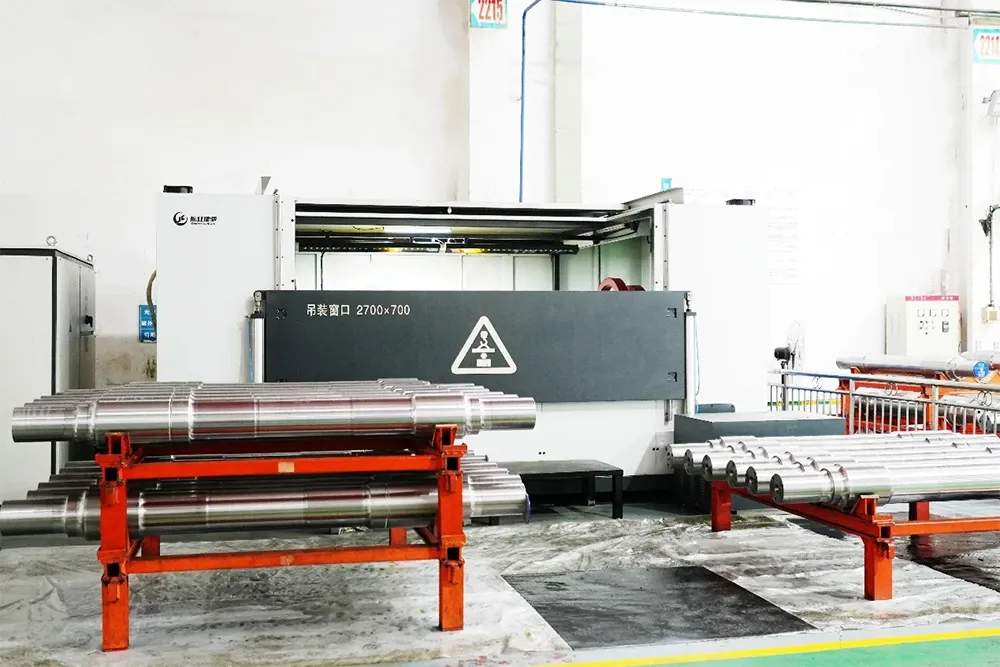

Crankshaft
CQE-8000
L ≤ 4 mMagnetic Particle Inspection Machine
Shafts, crankshafts and pipelines up to Ø 500 mm and 4 m long.

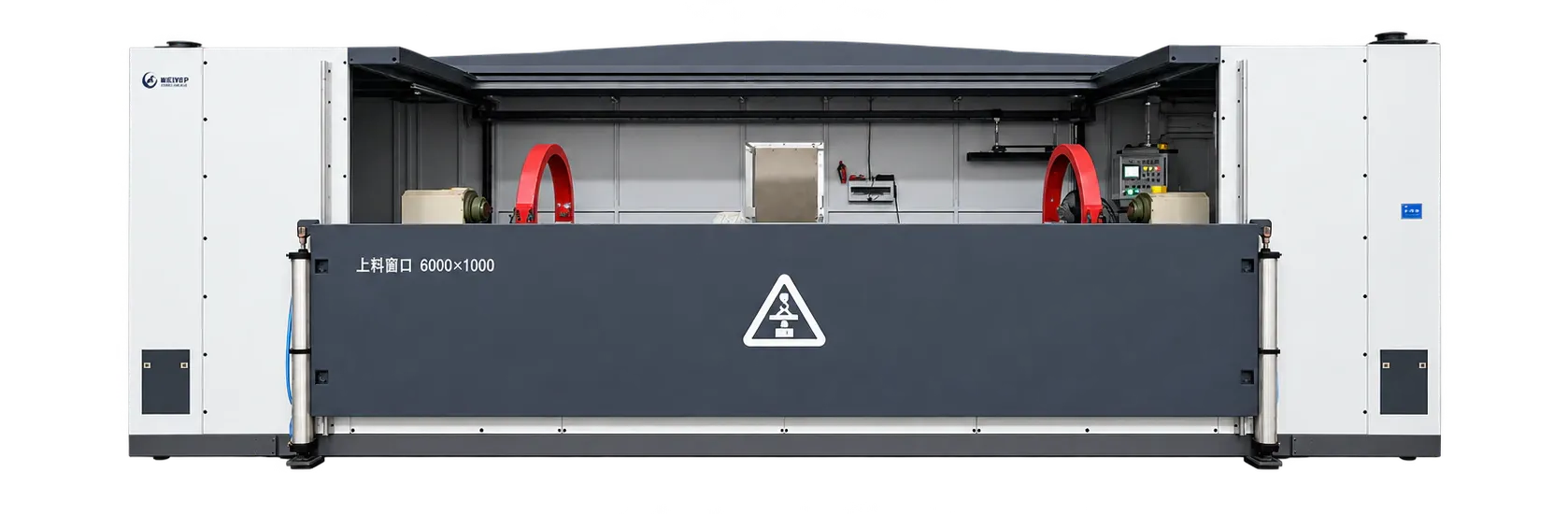

Crankshaft
CQE-10000
L ≤ 14 mMagnetic Particle Inspection Machine
PLC-controlled machine for large crankshafts and oil & gas pipelines up to 14 m.

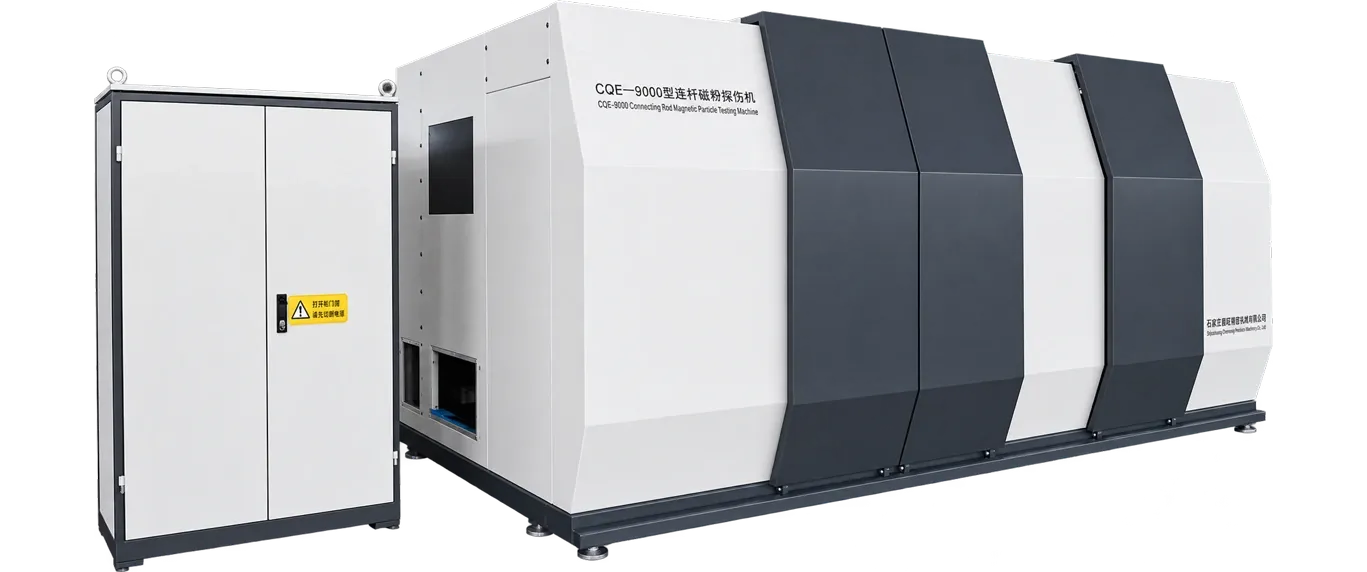

Crankshaft
CJW-9000
L ≤ 2 mMagnetic Particle Inspection Machine
Wet fluorescent inspection of connecting rods up to Ø 600 mm and 2,000 mm long.

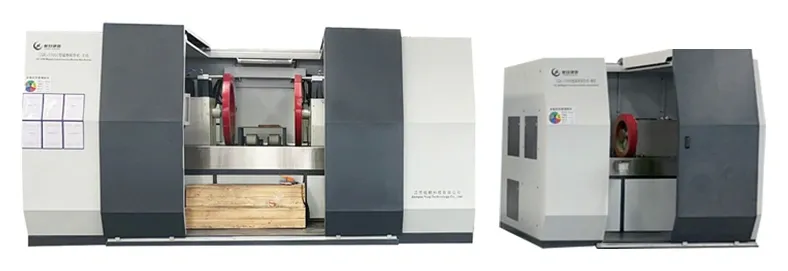

Main & Auxiliary
CQE-15000 / 12000
2 unitsMagnetic Particle Inspection System
Main unit for large parts, auxiliary unit for small parts, one shared power cabinet.

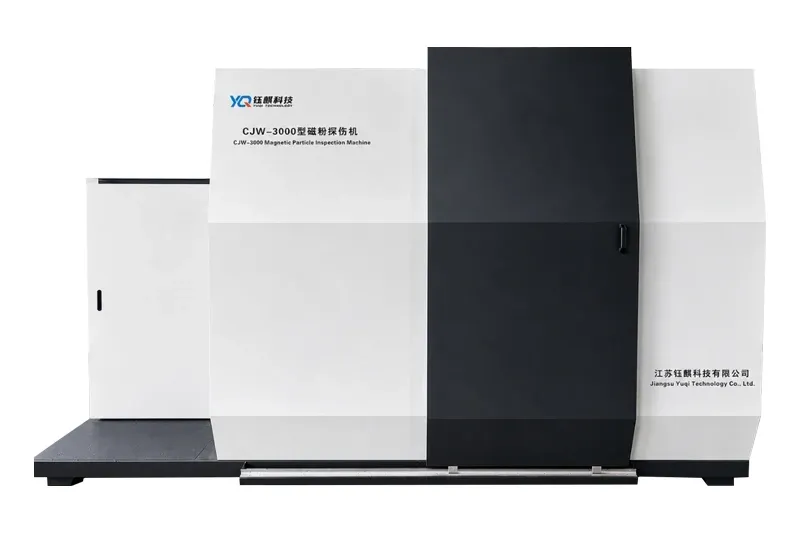

General-Purpose
CJW / CQE series
6 modelsGeneral-Purpose Magnetic Particle Inspection Machines
CJW-3000 / 5000 / 6000 (AC) and CQE-5000 / 6000 / 10000 (DC).
Forging MPI Machine
CJW / CQE forged-blank series
6 modelsForged Blank Magnetic Particle Inspection Machine
Forged blanks up to Ø 600 mm and 1,200 mm long, with clamping designed to reduce arcing.
UV-A Lights
SC100-10K
9 WPortable Rechargeable LED UV Light
High-intensity handheld UV-A light with instant full output.
UV-A Lights
UVLED365-SJ4028-6K
UV + whitePortable Rechargeable Fluorescent Inspection Light
Switchable UV-A / white light with two quick-swap lithium batteries.
UV-A Lights

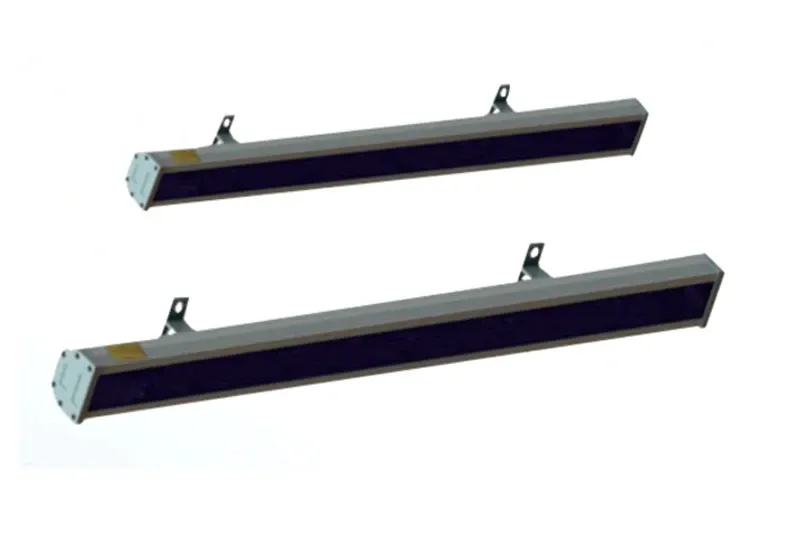

UVLED365-SJ5048
90 WSuspended MPI Inspection Light (90 W)
Suspended 1.5 m bar light for inspection booths, 30 × 3 W LEDs.

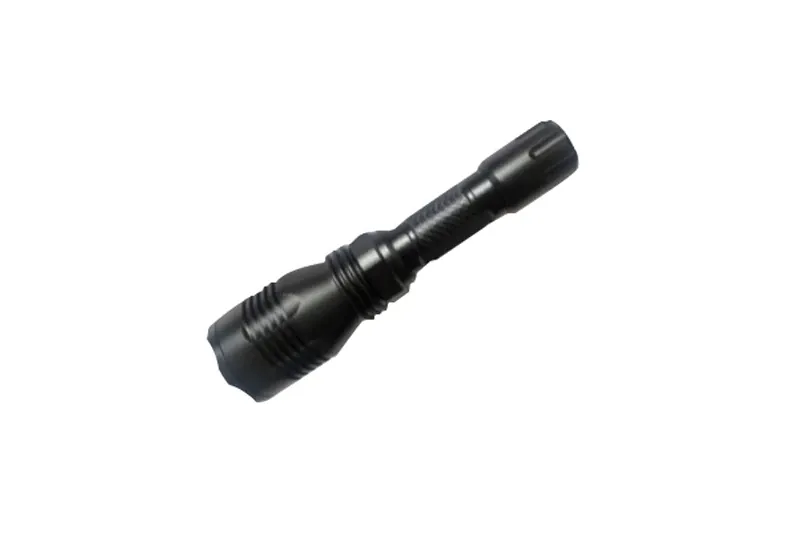

UV-A Lights
SJ-2000 UVLED365
3 WPortable UV Torch
Torch-style 3 W UV-A light with built-in battery.
Penetrant Line
STYQ-1000
FPI · DPIFluorescent & Dye Penetrant Inspection Line
Cleaning, penetrant, emulsifier, rinse, developer and darkroom stages in one line.
Compare general-purpose CJW / CQE models
| Model | CJW-6000 | CJW-3000 | CJW-5000 | CQE-6000 | CQE-10000 | CQE-5000 |
|---|---|---|---|---|---|---|
| Magnetization modes | Three-phase full-wave DC, AC, AC/DC switching, combined magnetization | |||||
| Circular magnetization current | AC 0–6,000 A | AC 0–3,000 A | AC 0–5,000 A | DC 0–6,000 A | DC 0–10,000 A | DC 0–5,000 A |
| Longitudinal field | AC 0–24,000 AT at the centre of the 3D magnetizer, adjusted on the touch screen | |||||
| Sensitivity | Clear indications on A1 15/50, 30/100 and CX-430 test pieces | |||||
| Coil travel | Electric drive | |||||
| Rotation | Electric drive | |||||
| Demagnetization | DC: ultra-low-frequency polarity reversing · AC: attenuation | |||||
